Part #:
1005-P-250-1

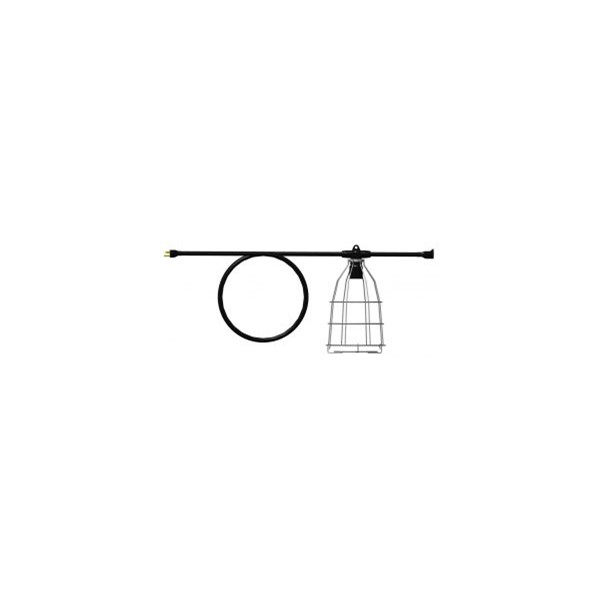

BAYLIGHT HI/LO, 1 DROP 250 GUARD 3FT 14/3 SJTOW MLD NEMA 5-15P (LAMP NOT INCLUDED)
• Overmolded lamp fixture with tough wire guard• 14/3 SJTW 300V cable with PVC overmolded resin that is designed to withstand extreme environments• Cable will not crack, split, or fray, and will remain flexible when exposed to low temperatures• Guard is made out of heavy duty .148 in diameter steel wire and designed to accommodate bulbs up to a 120W LED or 200W CFL• Easily convert from a high to low bay lighting requirement by changing out the bulb• Fixtures come with or without bulbs (see page 2 for bulb options)• Indoor and outdoor use - wet location rated when proper bulb and/or guard is used• 1-year warranty on fixture• Made in the USA
| Ideal Application | Commercial and Industrial Construction, Warehousing, Tent Lighting, Large Room Lighting, Maintenance /Storage spaces |
|---|---|
| Color | Black |
| Pallet Qty | 48 |
| UPC Code | 782862903896 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Hi/Low Bay |
| Category | Commercial Grade |
| Sub Category | High or Low Bay Light |
Other Resources
Technical Info
| Bulb Type | LED (Customer Supplied) |
|---|---|
| Cable Length | 3 |
| Cable | 14/3 |
| Cable Type | SJTW |
| Max Amps | 15 |
| Max Volts | 120 |
| Primary Cable End | Molded NEMA 5-15 Plug |
| NEMA Environment | Outdoor Use, Wet Location |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405408410 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 2.20000 |
| Pallet Qty | 48 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 10 |
| Shipment Packaging Height (in) | 10 |
| Warranty | 1 Year |
