Part #:
1007-XP-150

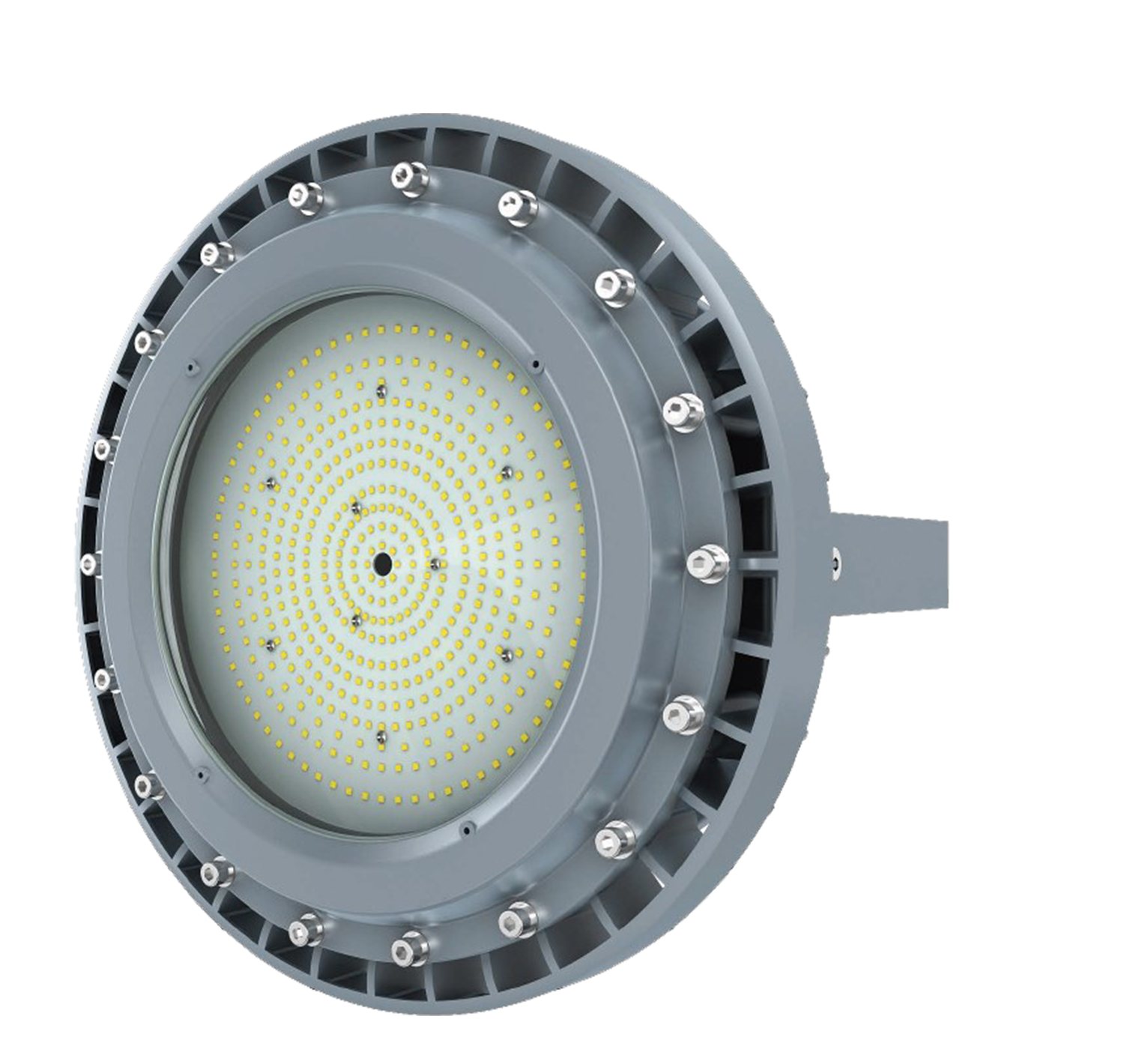

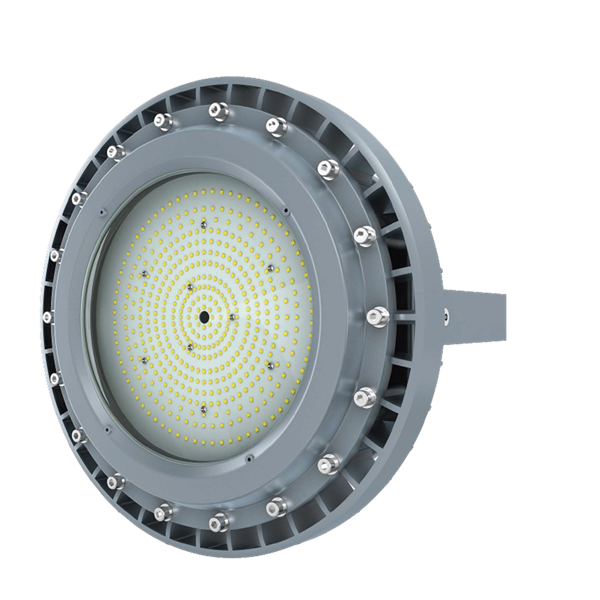

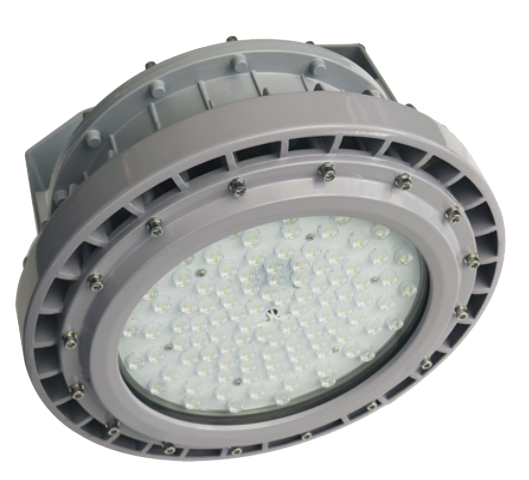

BAYLIGHT, EXPLOSIONPROOF C1D1 150W LED 21000LM 5000K NO REFLECTOR 120 DEGREE BEAM w/TRUNNION
• High efficacy: up to 140Im/W• CRI>80• Surface and pendant mounting• Copper free aluminium• High vibration resistance• 5 year warranty• Ambient temperature range: -40°C to 60°C
| Ideal Application | Oil & Gas Industries, Distilleries, Paint Manufacturing, Pumping Stations, Mining, Vessel Lighting, High Humidity Areas, High Temperature Locations |
|---|---|
| Color | Gray |
| UPC Code | 782862906583 |
| Country of Origin | CHINA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Hi-Bay XP |
| Category | Hazardous Location Grade |
| Sub Category | High Bay Light |
Other Resources
Technical Info
| Bulb Type | LED |
|---|---|
| Lumens | 21000 |
| Cable Length | 3 |
| Cable | 16/3 |
| Cable Type | SJTW |
| Max Amps | 1.2 |
| Max Watts | 150 |
| Primary Cable End | Blunt End |
| NEMA Environment | Class I Division 1, Groups C, D • Class I Division 2, Groups A, B, C, D • Class II Division 1 & 2, Groups E, F, G • Class III |
| Construction | Cast Aluminum |
Standards & Certifications
| ETL | ETL Listed |
|---|---|
| cETL | cETL Listed |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405106020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 46.00000 |
| Shipment Packaging Length (in) | 21.65 |
| Shipment Packaging Width (in) | 20.47 |
| Shipment Packaging Height (in) | 14.17 |
| Warranty | 1 Year |
