Part #:
1009-HAZ-100

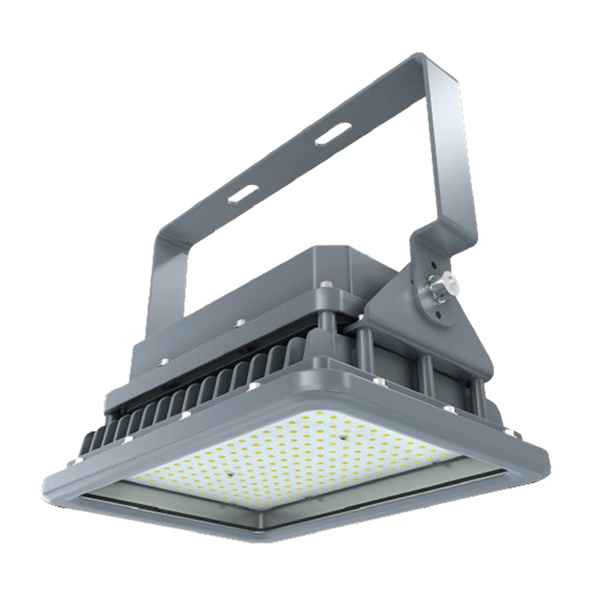

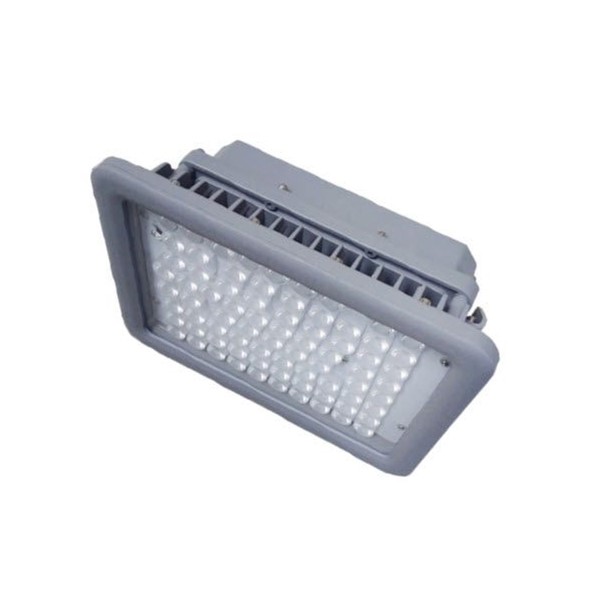

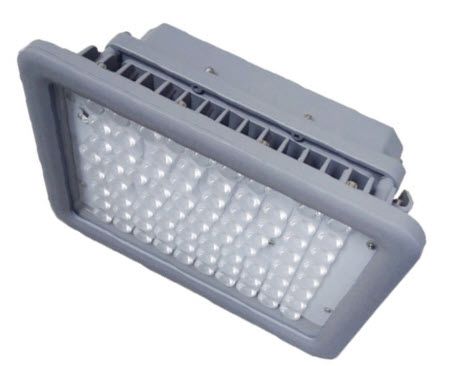

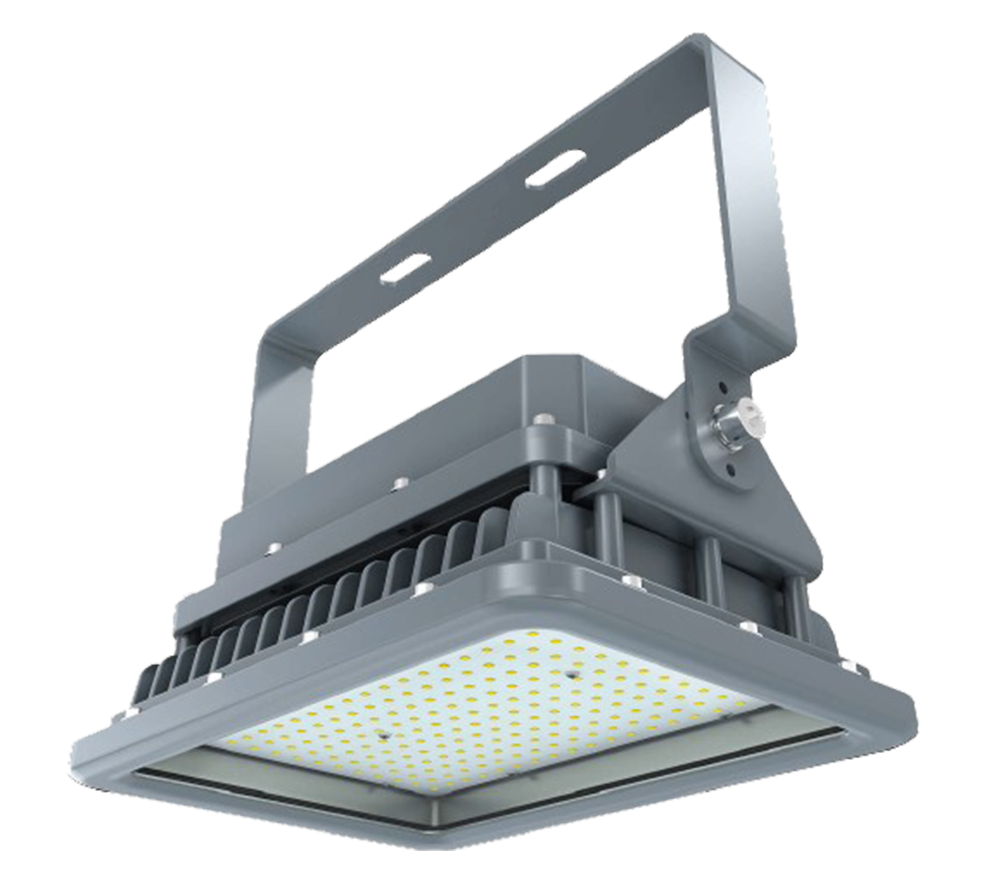

FLOODLIGHT, HAZARDOUS LOCATION C1D2 100W LED 14000LM 5000K NO REFLECTOR 120 DEGREE BEAM w/TRUNNION
• High efficacy: up to 140Im/W• CRI>80• Surface and pendant mounting• Copper free aluminum enclosure• High vibration resistance• 5 year warranty• Ambient temperature range: -40°C to 60°C
| Ideal Application | Oil & Gas Industries, Distilleries, Paint Manufacturing, Pumping Stations, Mining, Vessel Lighting, High Humidity Areas, High Temperature Locations |
|---|---|
| Color | Gray |
| UPC Code | 782862926772 |
| Country of Origin | CHINA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Hi-Bay XP |
| Category | Hazardous Location Grade |
| Sub Category | Wide Area Light |
Other Resources
Technical Info
| Bulb Type | LED |
|---|---|
| Lumens | 14000 |
| Cable Length | 3 |
| Cable | 16/3 |
| Cable Type | SJTW |
| Max Amps | 1 |
| Max Watts | 100 |
| Primary Cable End | Blunt End |
| NEMA Environment | Class I Division 2, Groups A, B, C, D • Class II Division 1 & 2, Groups E, F, G • Class III |
| Construction | Cast Aluminum |
Standards & Certifications
| ETL | ETL Listed |
|---|---|
| cETL | cETL Listed |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405106020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 17.30000 |
| Shipment Packaging Length (in) | 15 |
| Shipment Packaging Width (in) | 14 |
| Shipment Packaging Height (in) | 9 |
| Warranty | 1 Year |
L1000790 - Ericson 1009 LED Hazardous Location Flood Light Series 60-100 Watt
