Part #:
123100Y-3

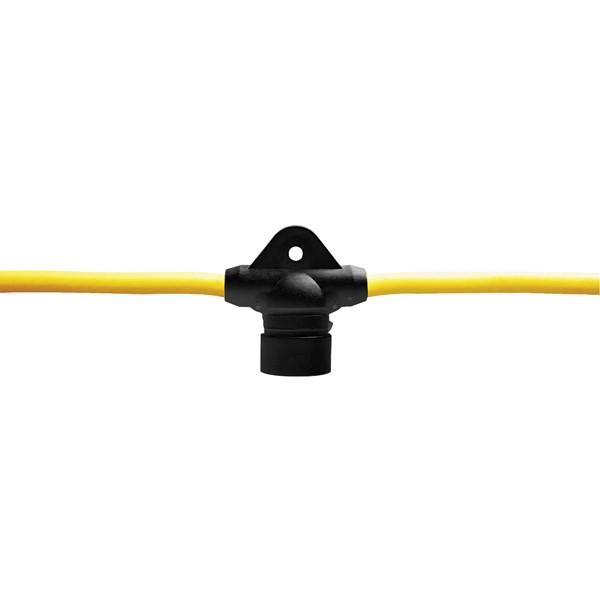

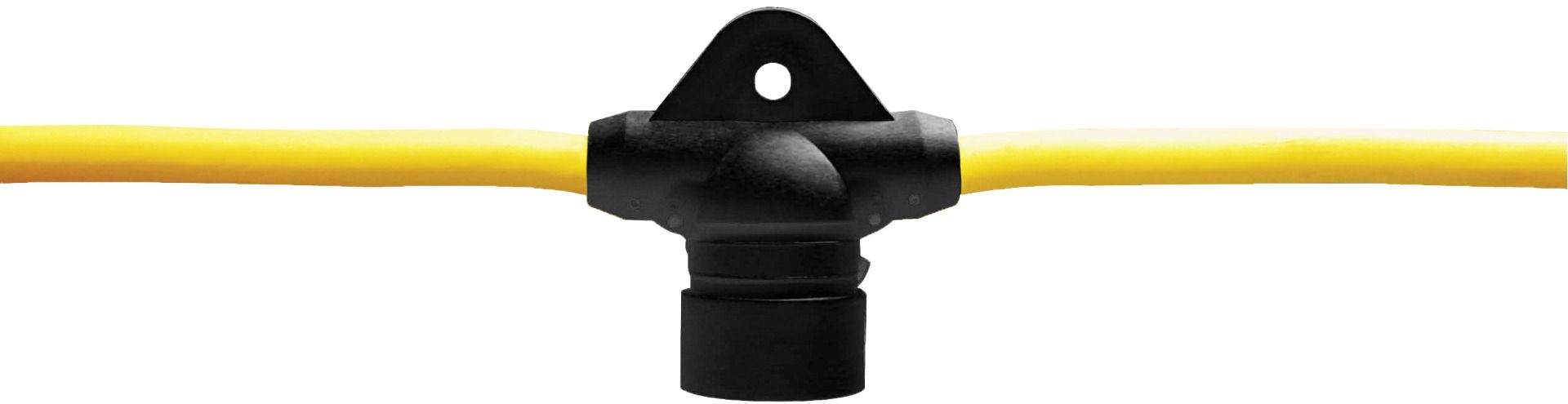

STRINGLIGHT, NAVY HD W/ 100FT 12/3 YEL SEOW CABLE W/ 10 LIGHTS TOTAL. 1 LIGHT SPACED EVERY 10FT. PRI = NEMA L5-20P & SEC = NEMA L5-20C. LED BULDS & GUARDS NOT INCLUDED
• UL listed and CSA certified• Meets OSHA, NEC, and CEC requirements.• Full threaded screwshell to ensure proper contact• Designed for applications that require rapid set-up and teardown• String lights available in 50ft. and 100ft.• String lights, standard with watertight NEMA Plug and connector• Power drops available• Guards sold separately• Product customizations are available upon reque
| Color | Yellow |
|---|---|
| Pallet Qty | 40 |
| UPC Code | 782862562154 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | HD SL |
| Category | Industrial Grade |
| Sub Category | String Light |
Other Resources
Technical Info
| Bulb Type | LED (Customer Supplied) |
|---|---|
| Cable Length | 100 |
| Cable | 12/3 |
| Cable Type | SOOW/SEOW |
| Max Amps | 20 |
| Max Volts | 120 |
| Max Watts | 150 |
| Primary Cable End | NEMA L5-20 (2310-PW6P) Water Tight Plug |
| Secondary Cable End | NEMA L5-20 (2410-CW6P) Water Tight Connector |
| NEMA Environment | Outdoor Use, Wet Location |
| Construction | Overall Length (FT) = 100, # of Sockets/Lights = 10, Length/Spacing between Sockets/Lights (FT) = 10 |
Standards & Certifications
| UL | UL Listed to ANSI/UL 1088, File E86155 |
|---|---|
| cUL | cUL Listed to CAN/ULC-S1088, File E86155 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405408410 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 25.00000 |
| Pallet Qty | 40 |
| Shipment Packaging Length (in) | 20 |
| Shipment Packaging Width (in) | 20 |
| Shipment Packaging Height (in) | 7 |
| Warranty | 1 Year |
L1000839 - Ericson Industrial & MIL-SPEC Heavy Duty String Lights
