Part #:
1239-50F-LED-EL

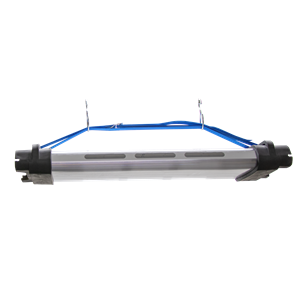

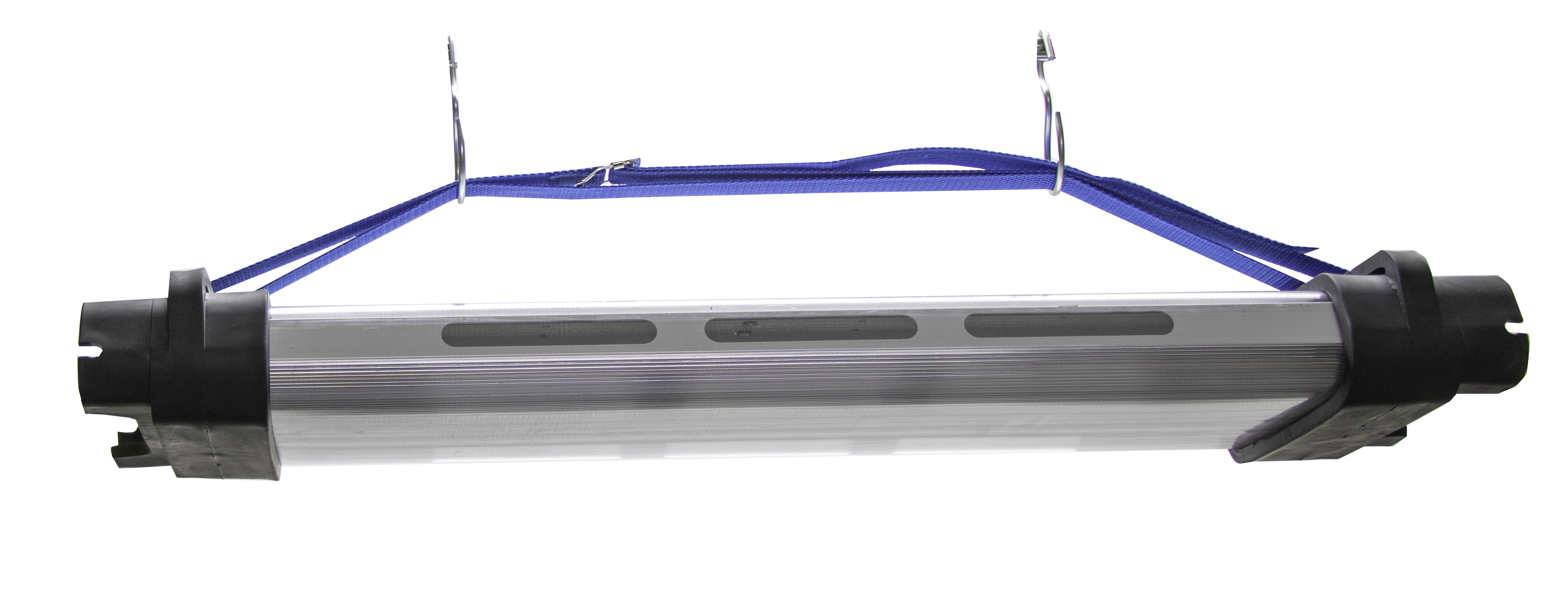

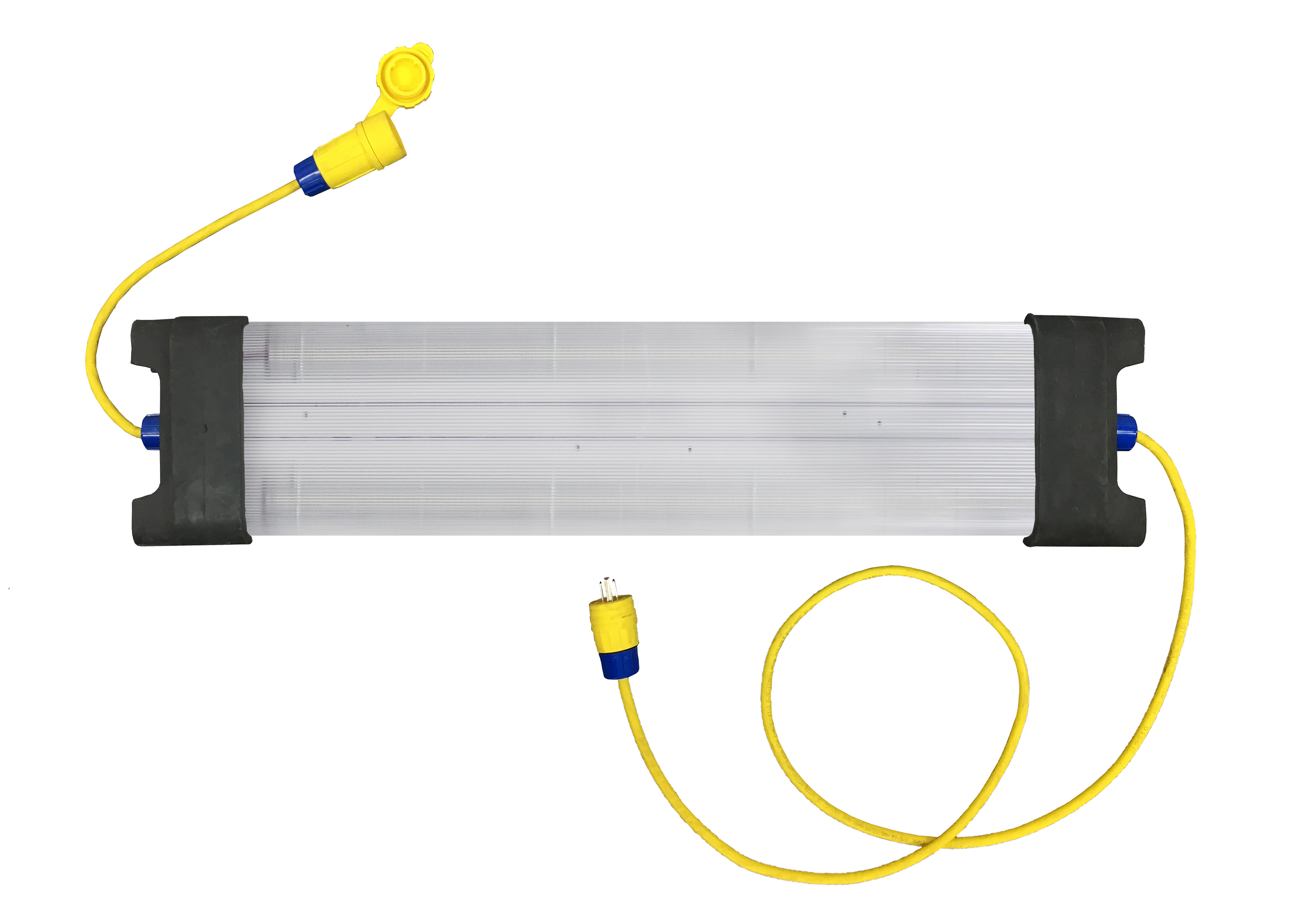

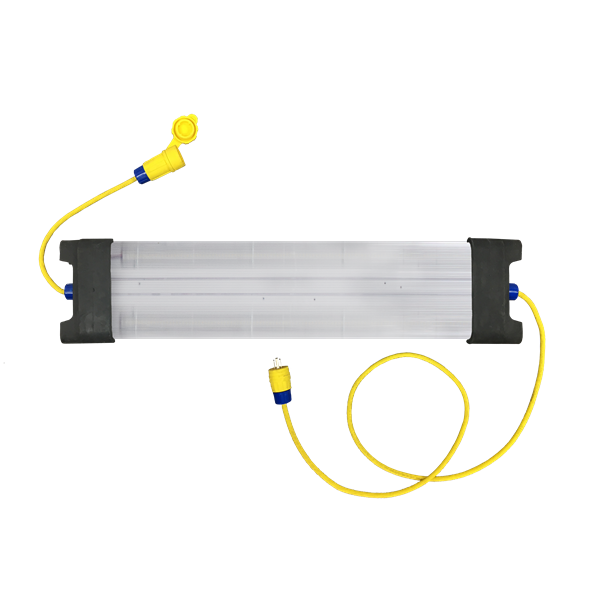

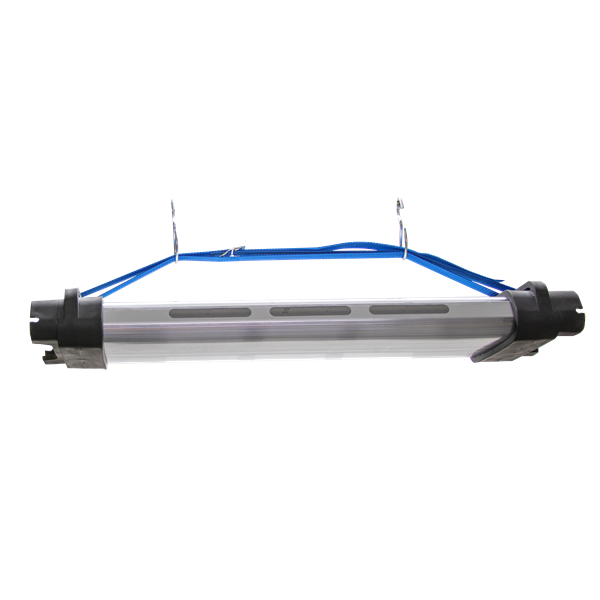

WIDE AREA TASK LIGHT, 1239 SERIES 65W LED EMERGENCY BATTERY BACKUP , 50FT OF 14/3 SJOW CABLE W/ NEMA 5-15P & SEC = NEMA 5-15C. MAX CONNECT = 3 FIXTURES PER CIRCUIT
• High efficient LED Array and Driver
• Lightweight, heavy duty and impact resistant material
• Ends are designed for cable egress to prevent cable pinching when unit is storage or used in a vertical orientation
• Available Emergency drive and battery provides 10% of rated lumens for 90 minutes
• Battery provides egress light for 90 minutes minimum
• Cool white and glare free LED for reduced eye stress
• Made in USA
| Color | Black |
|---|---|
| Pallet Qty | 100 |
| UPC Code | 782862901939 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | 1239 |
| Category | Industrial Grade |
| Sub Category | Wide Area Light |
Other Resources
Technical Info
| Temporary Light Type | Emergency Battery Backup |
|---|---|
| Bulb Type | LED |
| Lumens | 8500 |
| Cable Length | 50 |
| Cable | 14/3 |
| Cable Type | SOW |
| Max Amps | 12 |
| Max Watts | 1440 |
| Primary Cable End | NEMA 5-15 (1510-PW6P) Water Tight Plug |
| Secondary Cable End | NEMA 5-15 (1610-CW6P) Water Tight Connector |
| NEMA Environment | Outdoor Use, Wet Location |
| Construction | 90 minute Backup: Automatically stays on in the event of power loss, Auto charges battery/ballast assembly, test and main on/off switch. |
Standards & Certifications
| ETL | ETL listed to UL153 |
|---|---|
| cETL | cETL listed to CSA C22.2 No.250.4 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405408440 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 22.20000 |
| Pallet Qty | 100 |
| Shipment Packaging Length (in) | 27 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 6 |
| Warranty | 1 Year |
L1000871 - Ericson 1140 & 1239 LED Linear Wide Area Fixtures
