Part #:
CP5-36-ED

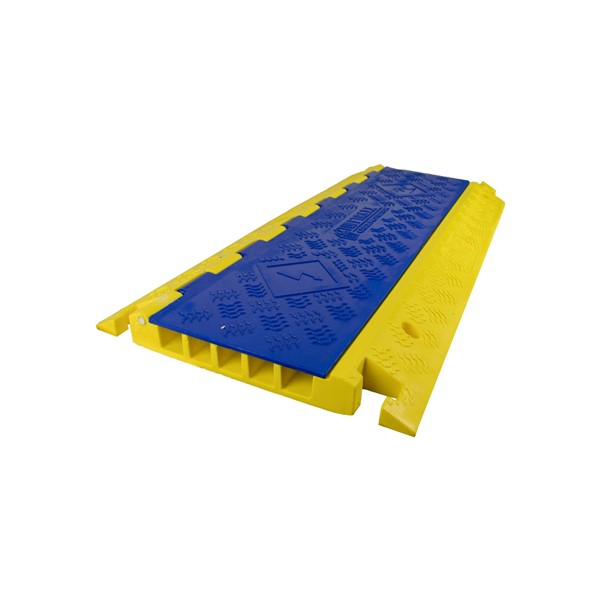

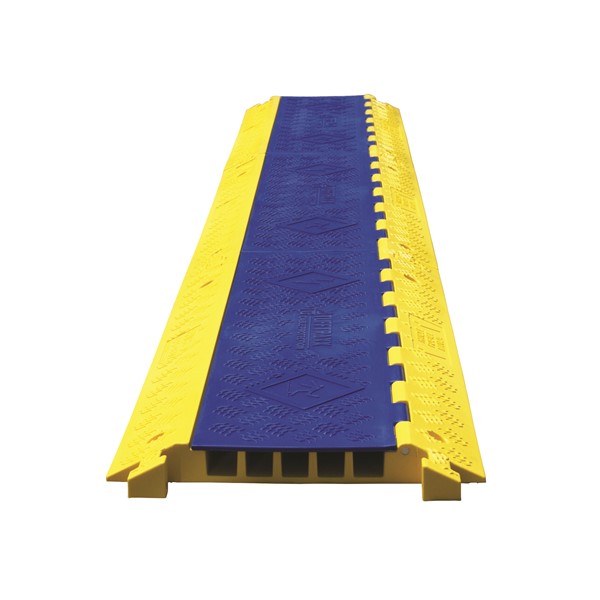

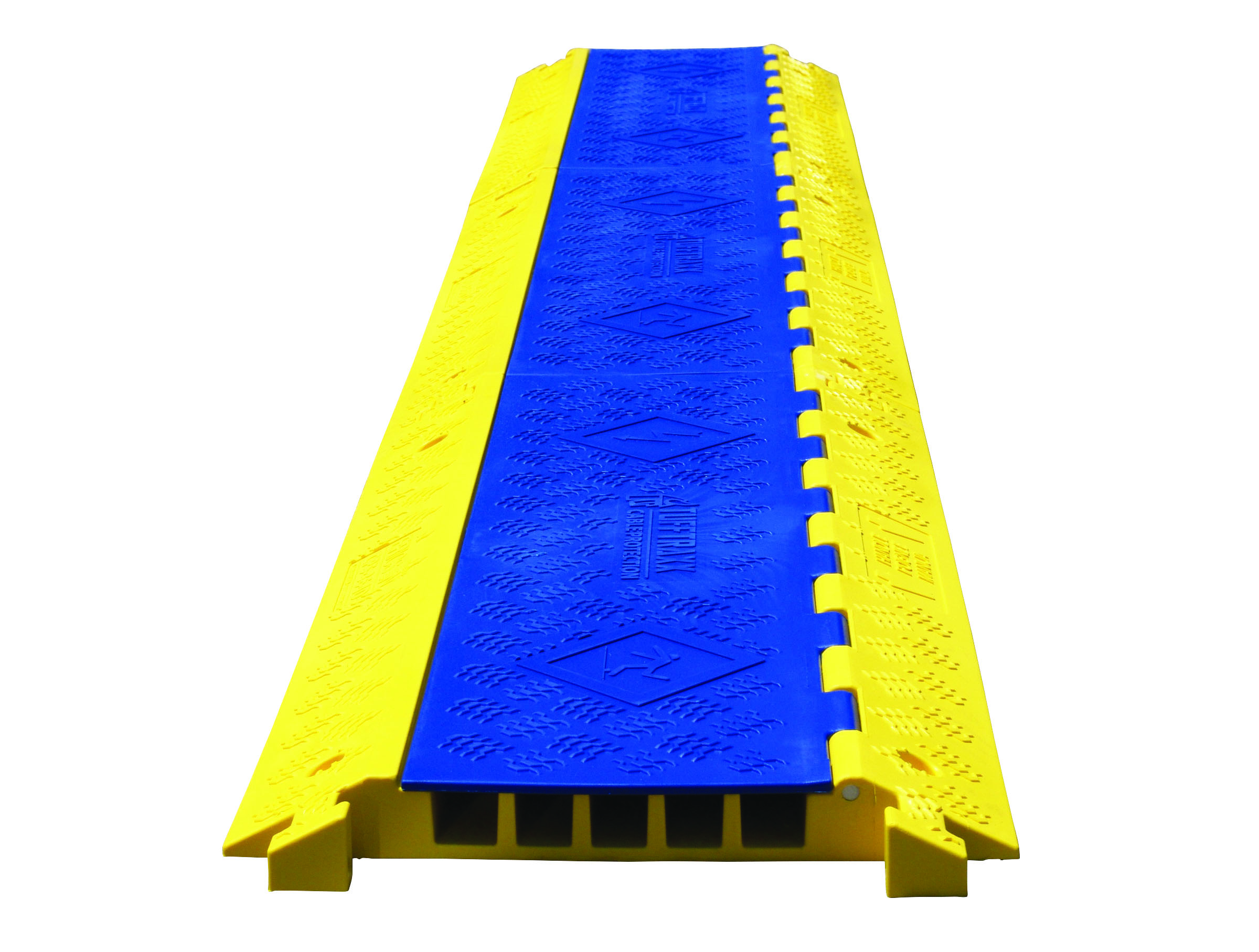

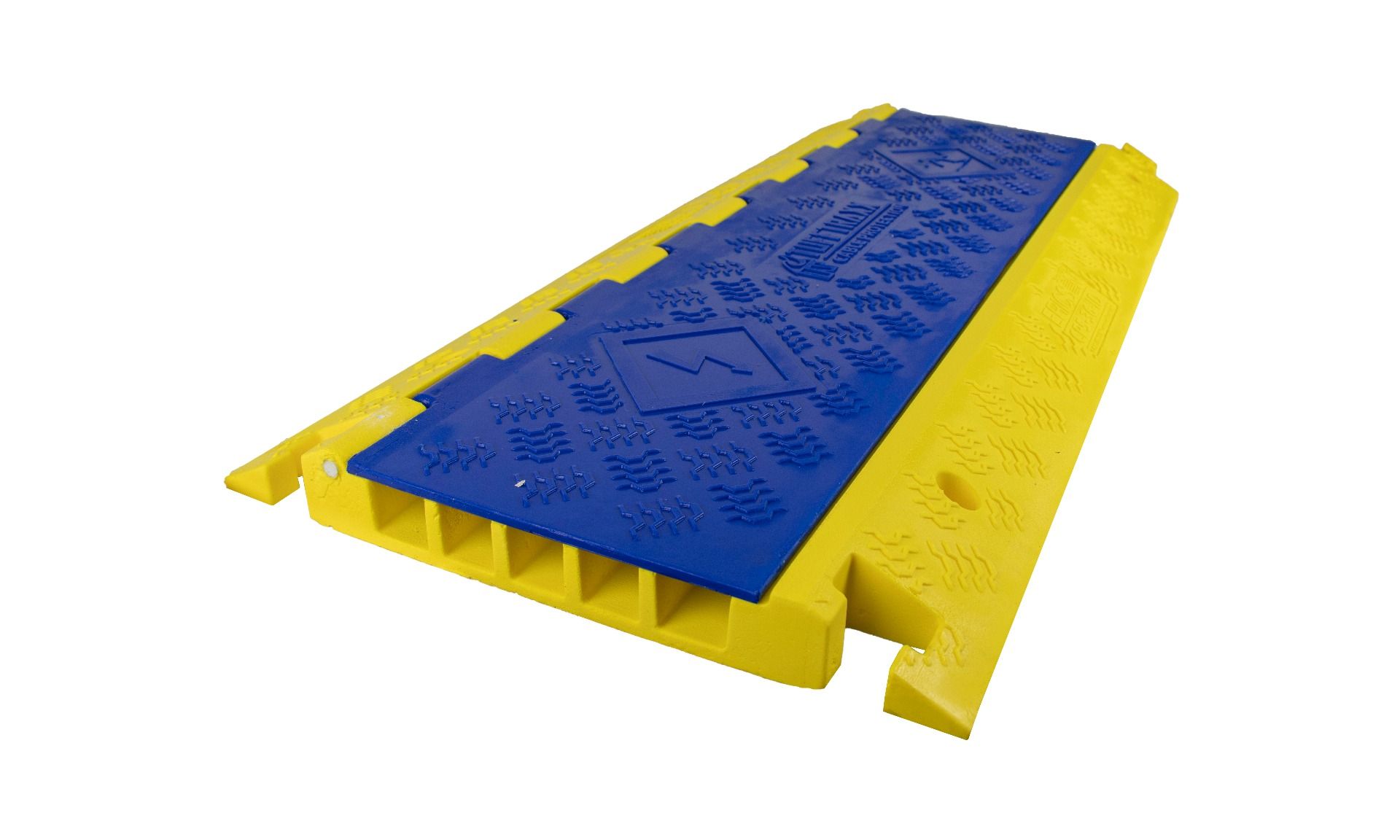

CABLE & HOSE PROTECTOR, EXTREME DUTY, 36 IN STRAIGHT 5 CHANNEL
• Lifetime warranty
• Industrial and extreme duty service ratings
• Best in-class load ratings, up to 50,000 lbs/axle
• Rounded dividers protect cables from snags and tears
• Rugged, all-weather polyurethane construction

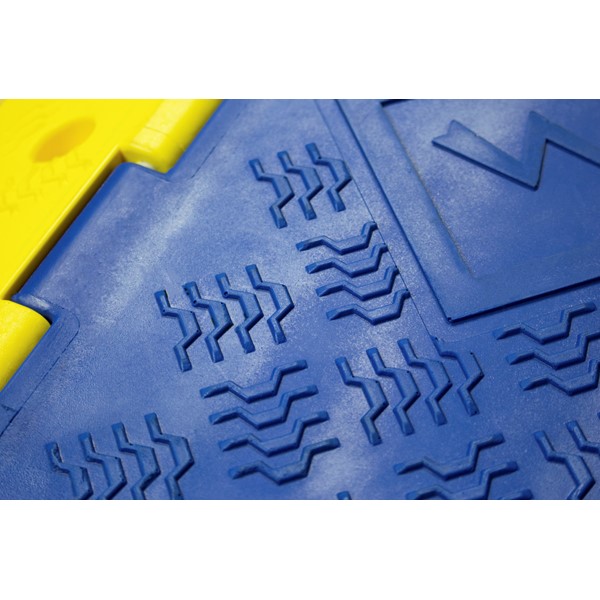

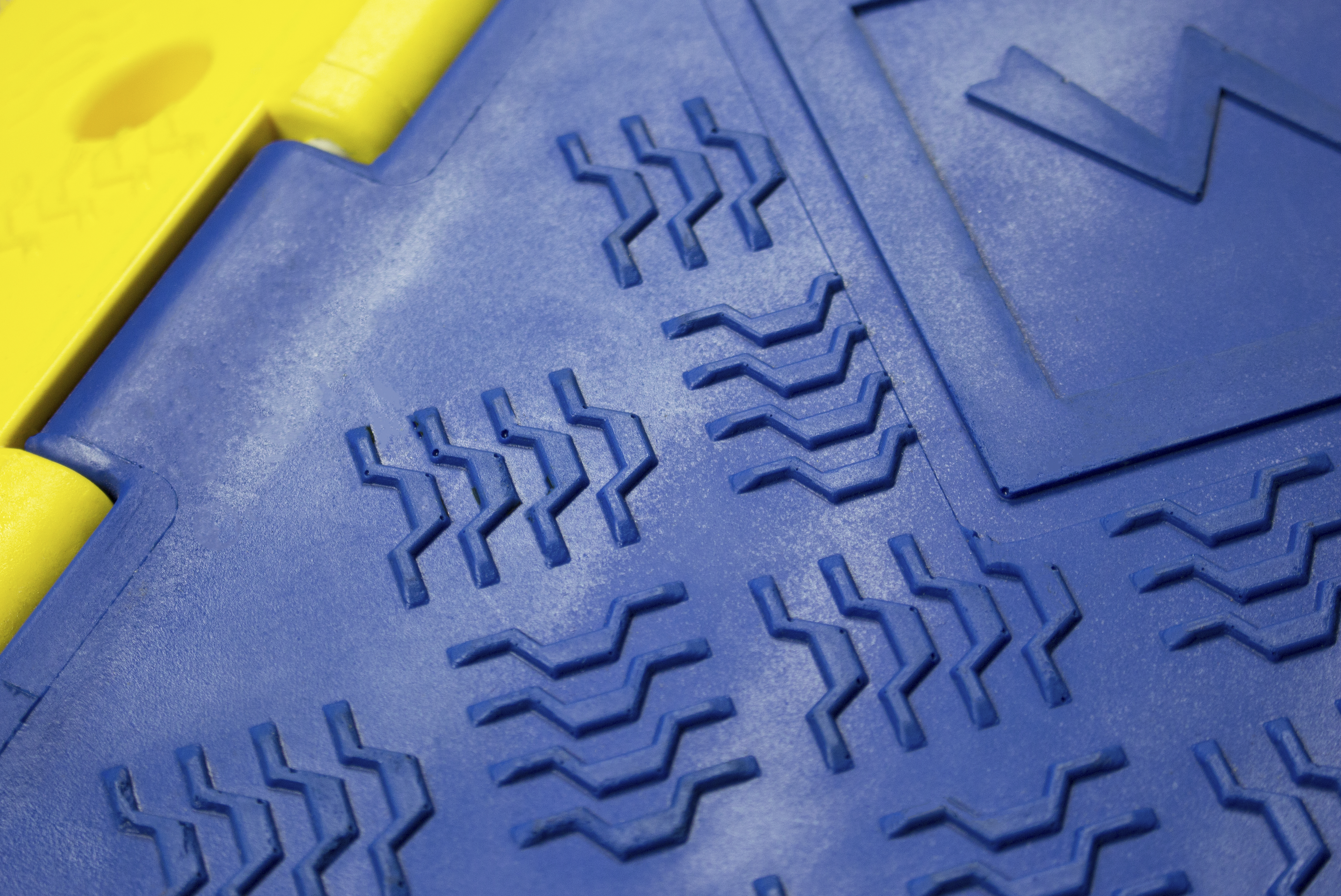

• Tread plate surface for increased traction
• Clearly identifiable molded safety warning symbols
• Meets NEC & OSHA requirements
• Large capacity (2.25 inch) linear sections
• Convenient stake-down holes provided
• Easy to carry handle molded into the back
• Made in the USA
| Ideal Application | Protectors are a critical safety measure in use at parks, concerts, construction sites, facility operations and energy exploration. They greatly reduce the potential risks of accidential tripping and fallings while also protecting the integrity of the cable and hose from pedestrian or vehicular traffic. |
|---|---|
| Color | Yellow + Blue |
| Pallet Qty | 30 |
| UPC Code | 782862899359 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Tuff-Traxx |
| Category | Cable & Hose Management |
| Sub Category | Straight Channel Protector |
Other Resources
Technical Info
| Channels | 5 |
|---|---|
| Maximum Outside Diameter (in) | 1.35 |
| Load Capacity (lbs) | 50,000 |
| Operating Temperature (F) | 120 |
| Construction | Polyurathane |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 3926909990 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 27.00000 |
| Pallet Qty | 30 |
| Shipment Packaging Length (in) | 39 |
| Shipment Packaging Width (in) | 20 |
| Shipment Packaging Height (in) | 3 |
| Warranty | 1 Year |
L1000292 - Ericson TuffTrax Series
