Part #:
2312PW6P123B

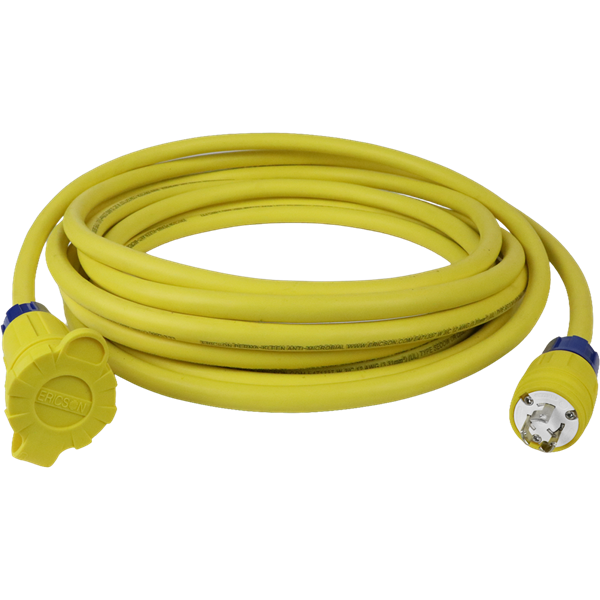

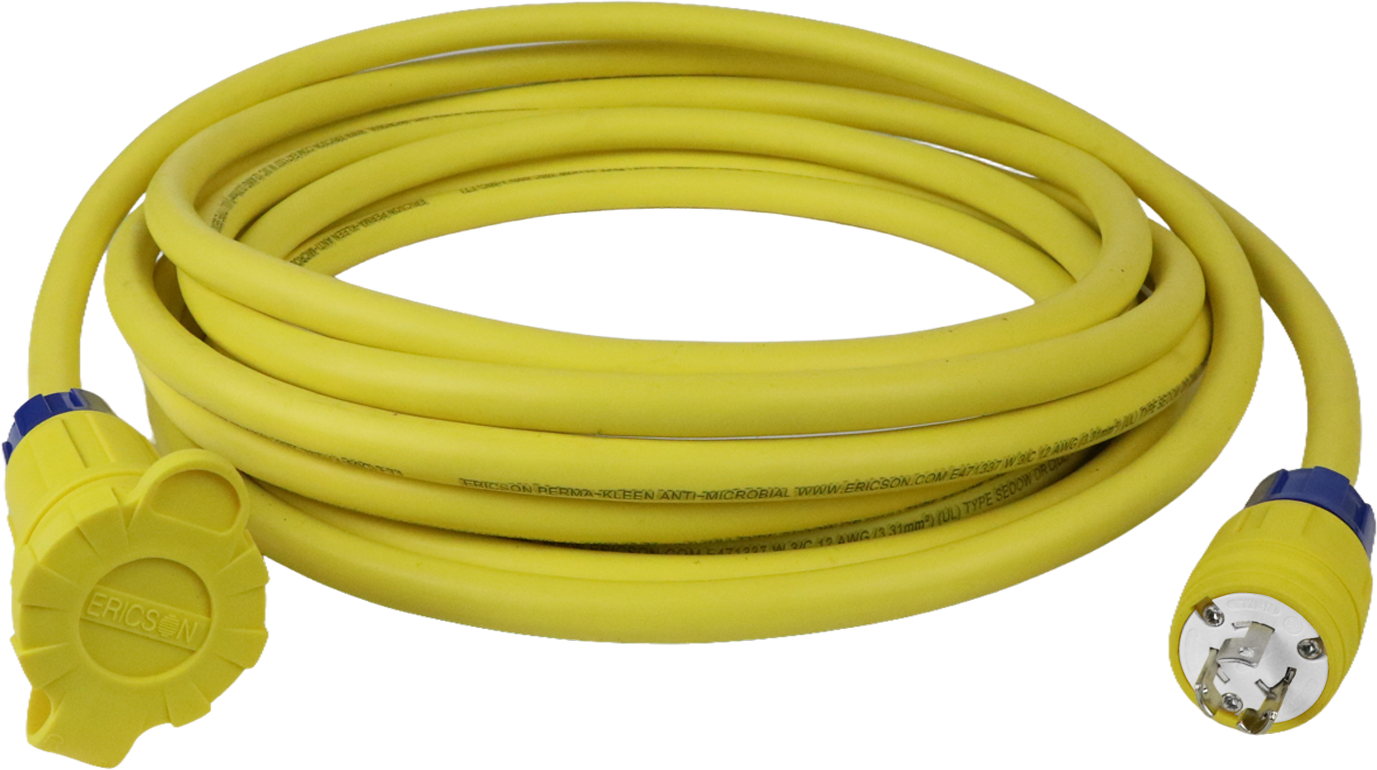

CORDSET, PERMA-TITE EXTREME GRADE IP69K WATERTIGHT, YELLOW 12/3 SOW 50FT, PRI: L6-20P (2312-PW6P) & SEC: L6-20C (2412-CW6P)
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
|---|---|
| Color | Yellow |
| UPC Code | 782862825884 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Perma-Tite |
| Category | Cordsets / Extension Cords |
| Sub Category | Watertight Cordset |
Other Resources
Technical Info
| Load Capacity (Amps) | 20 |
|---|---|
| Cable Type | #12/3 SOW |
| Cable Length (ft) | 50 |
| Plug Type | L6-20P |
| Conn or Receptacle Type | L6-20C |
| Receptacle Qty | 1 |
| Environmental Rating | Watertight (IP69K) |
Standards & Certifications
| UL | UL Listed to ANSI/UL 817, File E81746 |
|---|---|
| CSA | CSA Certified to C22.2 No. 21, File 89923 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8544429090 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 11.60000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 12 |
| Shipment Packaging Height (in) | 12 |
| Warranty | 1 Year |
L1000894 - Ericson Product Category Overview Guide
