Part #:
CDU20-NM-3R-B-25-GFCI

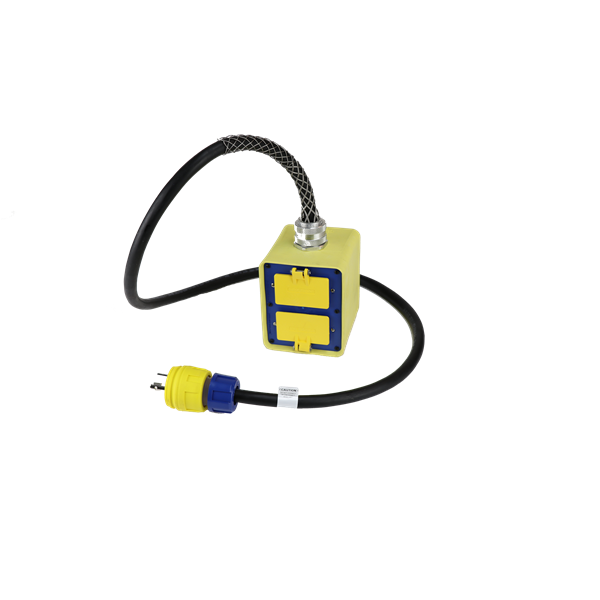

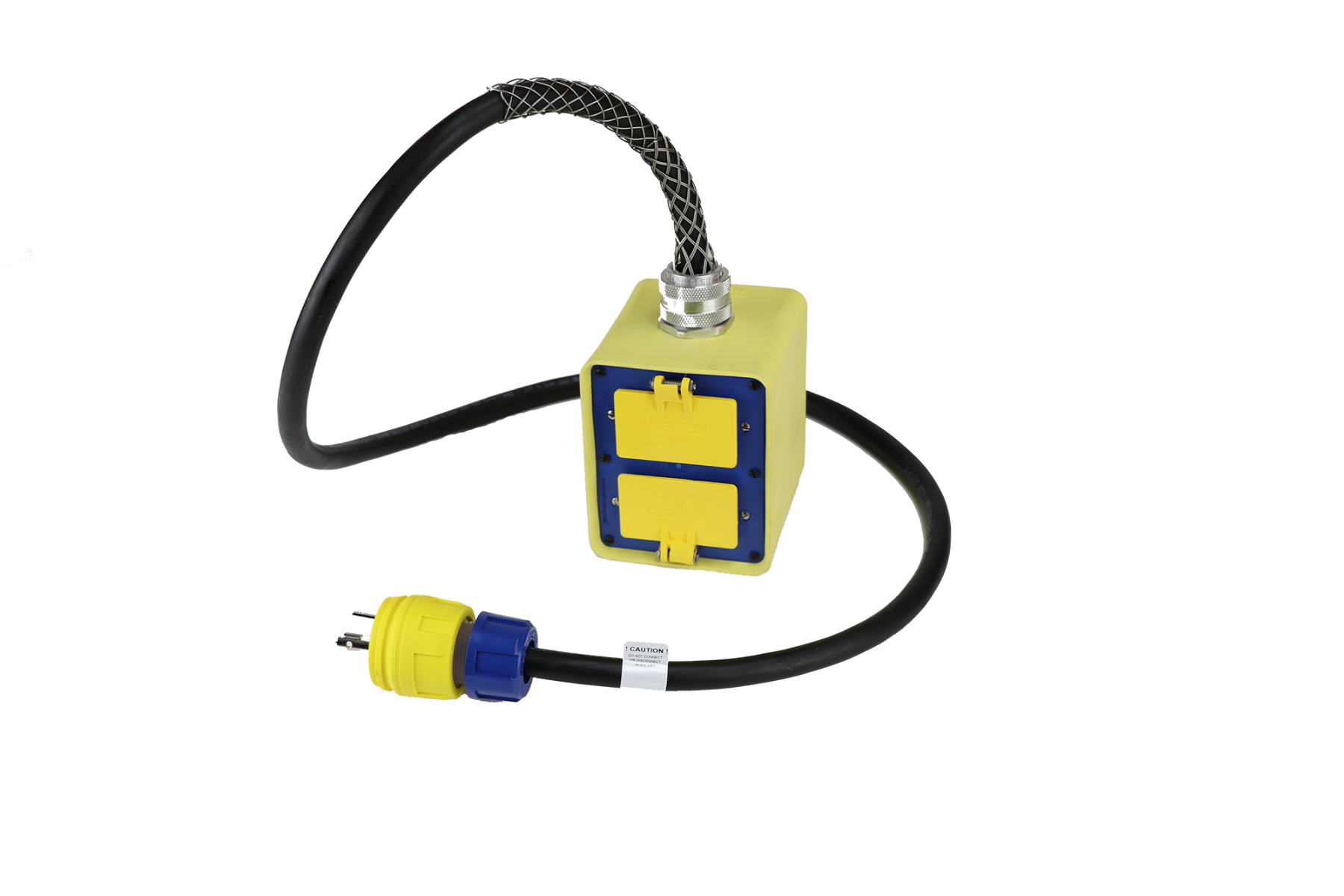

CDU NON-METALLIC BOX CORDSET 20 AMP 125/250V 25FT AWG 12/4 SOOW BLACK CORD, INPUT PLUG = L14-20 2320-PW6P, OUTPUT = 2-GANG BOX WITH WIRE MESH WITH 4 NEMA 5-20 GFCI PROTECTED DUPLEXS W/ FLIP COVERS
• 120V & 120/240V 20-Amp & 30-Amp Distribution Options• Indoor and Outdoor Configurations• NEMA Locking Plug Configurations to Match Popular Generator Outlets• UL943 5th Edition GFCI Protected Outlets • All Receptacles Meet Outdoor, WR Rating• Class Exclusive Individual Receptacle Overloads • Rugged, Non Surface Marring, Nonmetallic Enclosures • Secure Deluxe Wire Mesh Strain Relief for Cord and Pull-Out Protection• Water-Tight Locking Plugs with Nickel Plated Blades for Extended, Outdoor Use• Cord lengths available in popular 6’ & 25’ lengths• Receptacle, Box and Cover Assemblies – (SR20 and SR30) • Custom Colors, Cord Type, Labeling and Receptacle Configurations Available
| Color | Black |
|---|---|
| UPC Code | 782862930151 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | CDU-NM |
| Category | PDUs - Power Distribution Unit |
| Sub Category | Compact Distribution Unit - NM |
Other Resources
Technical Info
| Primary Voltage | 120/240 |
|---|---|
| Phase | 1 |
| Secondary Voltage | 120 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 4 |
| Feed Thru | No |
| Construction | Rubber |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8544429090 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.00000 |
| Warranty | 1 Year |
Documents
Product Category Overview Guide
-
L1000894 - Ericson Product Category Overview Guide
-
L1000903- Ericson Factory Assembled Cordset Solutions
