Part #:
CDU50-3R-A

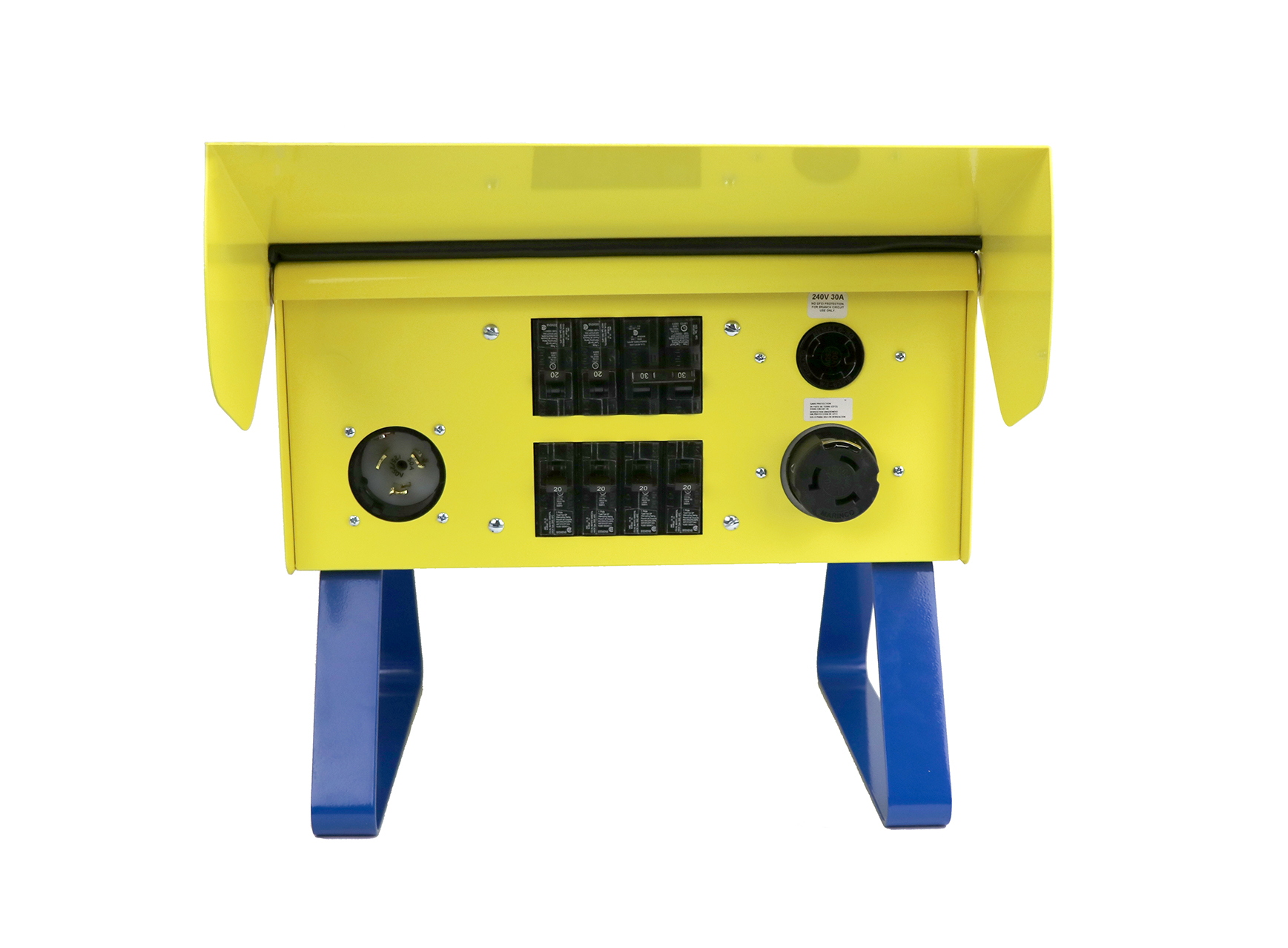

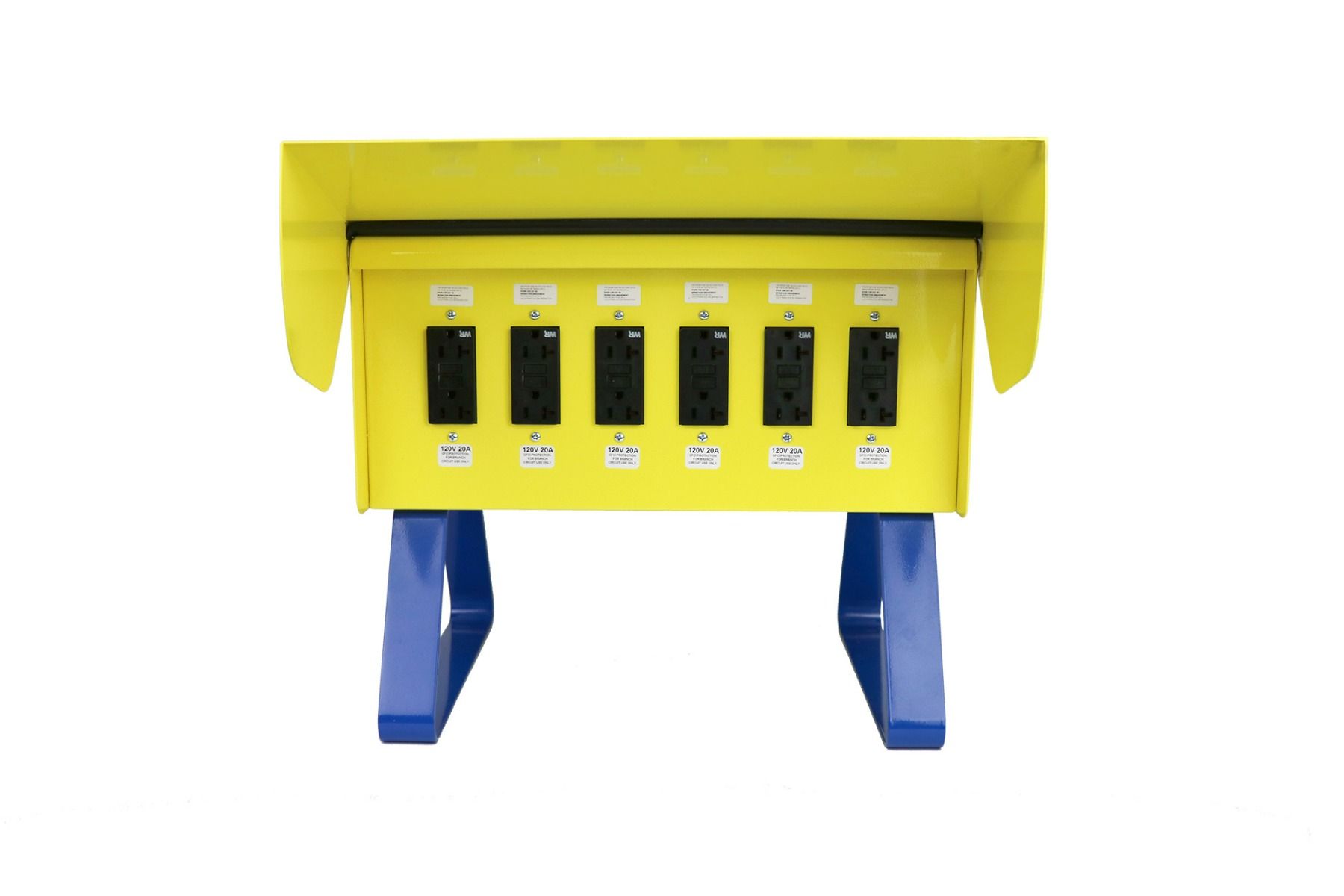

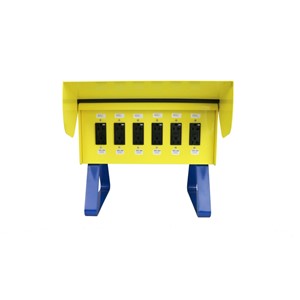

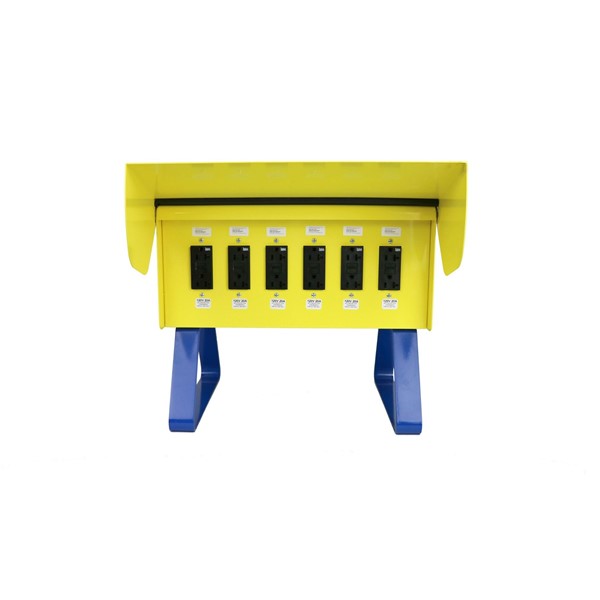

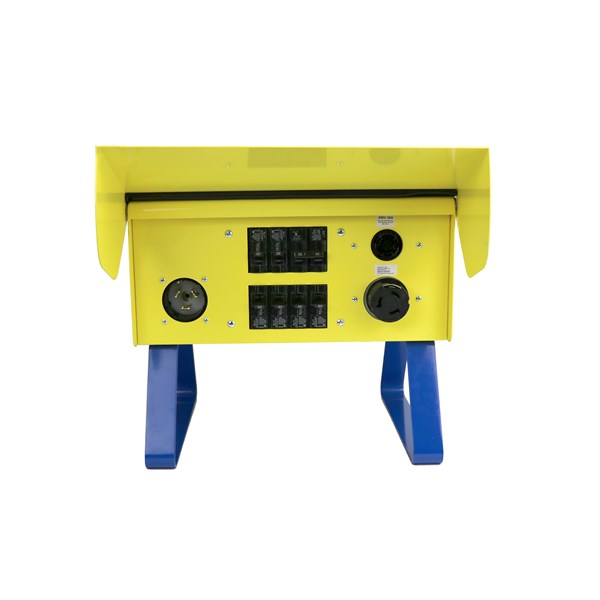

COMPACT DISTRIBUTION UNIT 50A NEMA3R W/ CS6375 INLET w/ (6) 5-20 GFCI DPLX, (6) 20A BREAKERS, (1) L6-30 w/NON-GFCI BREAKER AND 50A CALIFORNIA STYLE FEEDTHRU
• cETLus listed for use in U.S. and Canada• NEMA 3R in-use - Outdoor Version• NEMA 1 - Indoor Version• Simplified One-Hand Carrying• Reduced operational footprint• Anti-nuisance tripping design• Less maintenance vs traditional 50A PDU’s• Twice the electrical outlets of traditional PDU’s• Multiple panel configurations allow receptacle customization• Stackable Design• Patented enclosure design• Patented open neutral protection• Custom color and labeling available • Product customization available upon request
| Color | Yellow |
|---|---|
| Pallet Qty | 18 |
| UPC Code | 782862930359 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | CDU |
| Category | PDUs - Power Distribution Unit |
| Sub Category | Compact Distribution Unit |
Other Resources
Technical Info
| Primary Voltage | 120/240 |
|---|---|
| Phase | 1 |
| Secondary Voltage | 120/240 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 6 |
| Receptacle B Type | L6-30 |
| Receptacle B Qty | 1 |
| Feed Thru | Yes |
| Construction | Steel |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 1 |
| HTS code | 8536308000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 36.80000 |
| Pallet Qty | 18 |
| Shipment Packaging Length (in) | 18 |
| Shipment Packaging Width (in) | 15 |
| Shipment Packaging Height (in) | 18 |
| Warranty | 1 Year |
