Part #:
1067-CLC

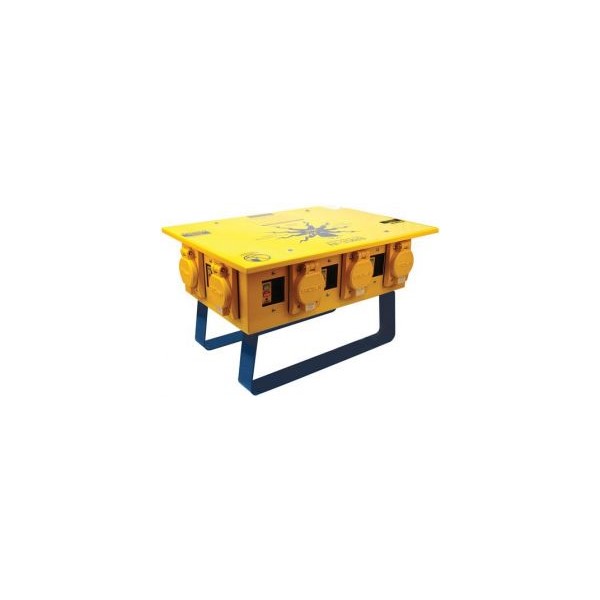

OSCAR 1067-CLC 50A 240V NEMA3R (6) SINGLE NEMA L5-20 L6-30 W/ 30A GFCI W/O VMM W/ FLIPCOVERS
• cETus listed for use in U.S. and Canada• UL943-5th Edition Self-Testing GFCI Module with Nema 4x Test/Resent Buttons For Exceptional Damp/Wet Areas• UL1640 – Open Neutral Protection• 30A, 240V GFCI Capable Welding Receptacle as Standard Option• Custom Voltage, 3-Phase & Receptacle Options Available• Heavy Duty Powder Coated Enclosure and Legs to Ensure Rugged Jobsite Performance• Heavy Duty Legs are Oriented in “sled” Fashion for Easy Jobsite Repositioning• Outdoor Units Provide Nema 3R Weather Resistance Protection for Circuitry• Locking Receptacle Version has Optional Lockable Weather Resistant Covers• Weather Resistant Cover for Circuit Breaker Protection• Power Inlet & Outlet Clearly Marked on Units Top• 50A Capable Feed-through• Field Serviceable by Qualified Personnel• Renewable Parts List Included and Affixed Under Top Cover• Customized Contractor or Channel Partner Color and Labeling Available
| Color | Yellow |
|---|---|
| UPC Code | 782862847015 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Oscar |
| Category | PDUs - Power Distribution Unit |
| Sub Category | Oscar/Spider 106X Series |
Other Resources
Technical Info
| Primary Voltage | 120/240 |
|---|---|
| Phase | 1 |
| Secondary Voltage | 120/240 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | L5-20 SINGLE |
| Receptacle A Qty | 6 |
| Receptacle B Type | L6-30 w/ GFCI |
| Receptacle B Qty | 1 |
| Feed Thru | Yes |
| Construction | Steel |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536308000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 38.70000 |
| Shipment Packaging Length (in) | 22 |
| Shipment Packaging Width (in) | 16 |
| Shipment Packaging Height (in) | 13.5 |
| Warranty | 1 Year |
