Part #:
OPC-03-208-200-LBLN-12150350-U

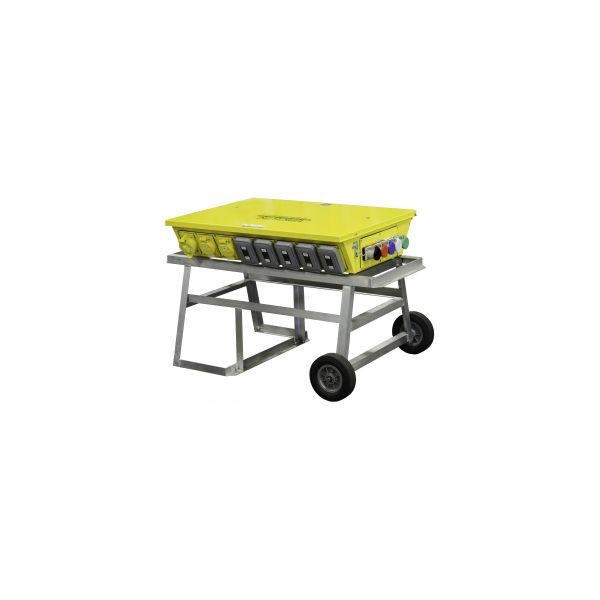

OSCAR POWERCART PDU, PDU, 3PH 120Y208V 200A CAM IN BOLT-ON ML NON-FEED-THRU (12) 5-15 DPLX GFI (3) CS6369
| Active Revision | B |
|---|---|
| Color | Yellow |
| Pallet Qty | 1 |
| UPC Code | 782862899618 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Active Revision | B |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Oscar PowerCart |
| Category | PDUs - Power Distribution Unit |
| Sub Category | PDC - Power Distribution Cart |
Other Resources
Technical Info
| Primary Voltage | 120/208 |
|---|---|
| Phase | 3 |
| Secondary Voltage | 120/208 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | 5-15 DUPLEX |
| Receptacle A Qty | 12 |
| Receptacle B Type | CS6369 |
| Receptacle B Qty | 3 |
| Feed Thru | No |
| Construction | Steel & Aluminum |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8537109170 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 250.00000 |
| Pallet Qty | 1 |
| Shipment Packaging Length (in) | 48 |
| Shipment Packaging Width (in) | 40 |
| Shipment Packaging Height (in) | 36 |
| Warranty | 1 Year |
L1000894 - Ericson Product Category Overview Guide
