Part #:
BE1-CABCM3034-SS

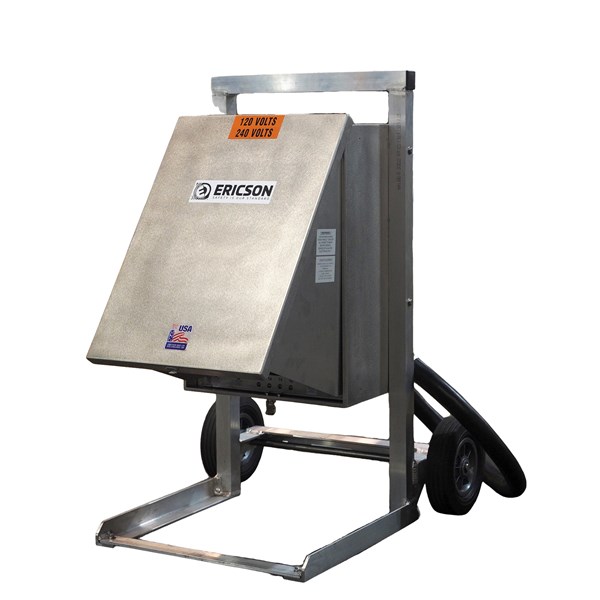

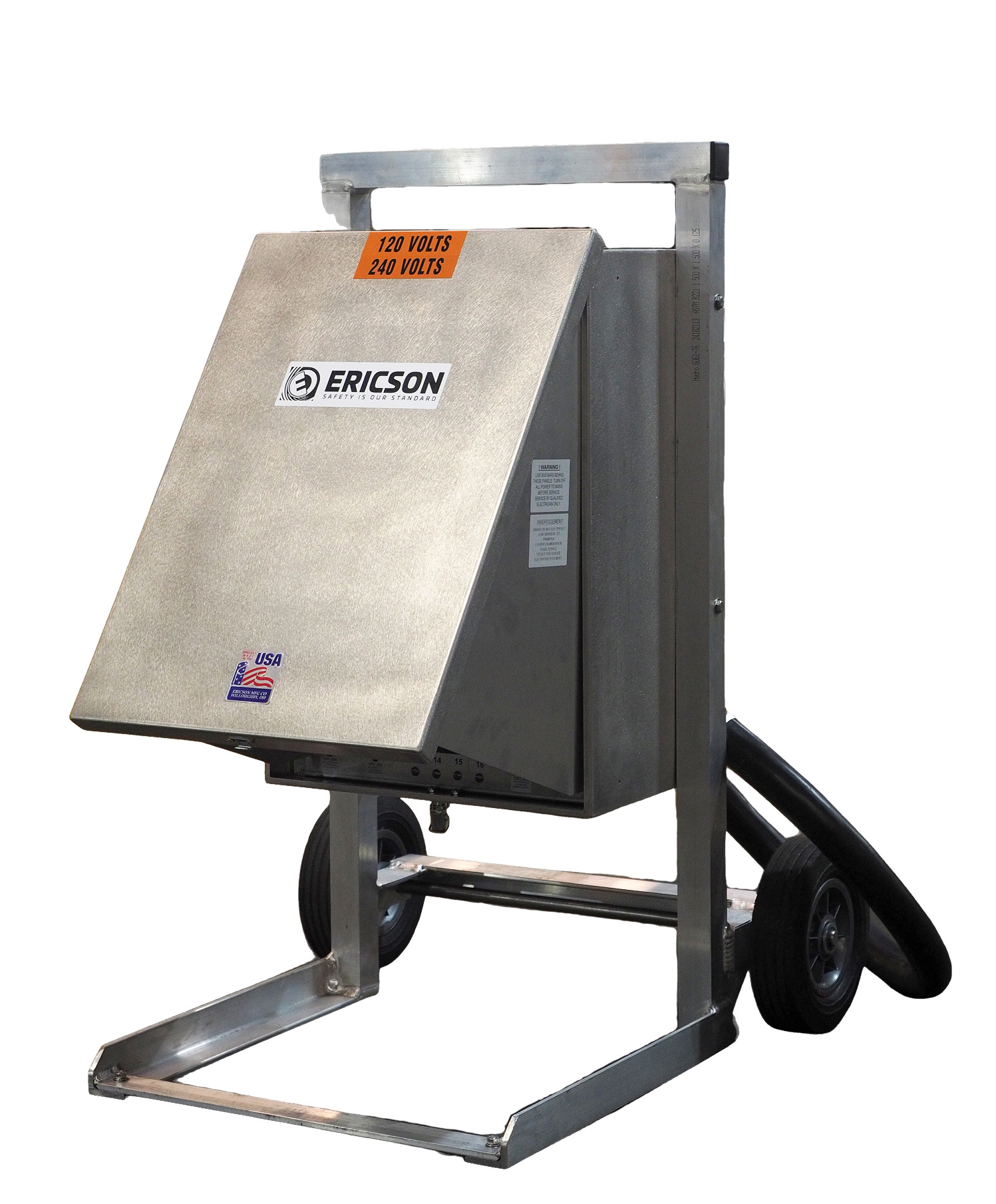

PDC - POWER DISTRIBUTION CENTER, 3PH 120Y208V 100A W/ MCB 15FT AWG2/5 BLUNT INPUT PIGTAIL (3) 5-20 GFCI DUPLEXES, (4) CS6369, STAINLESS STEEL ENCLOSURE
| Color | Stainless |
|---|---|
| UPC Code | 782862937440 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | PDC |
| Category | PDUs - Power Distribution Unit |
| Sub Category | PDC - Power Distribution Cart |
Other Resources
Technical Info
| Cable | 15' 2/5 Type W |
|---|---|
| Primary Cable End | Blunt |
| Primary Voltage | 120/208 |
| Phase | 3 |
| Secondary Voltage | 120Y208 |
| Main Circuit Breaker | Yes, Main Circuit Breaker |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 3 |
| Receptacle B Type | CS 6369 |
| Receptacle B Qty | 4 |
| Feed Thru | No |
| Construction | Stainless Steel & Aluminum |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8537109170 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.00000 |
| Warranty | 1 Year |
L1000917- Jobsite Power- PDC PDU
