Part #:
BE1-CAM2CL3060TT

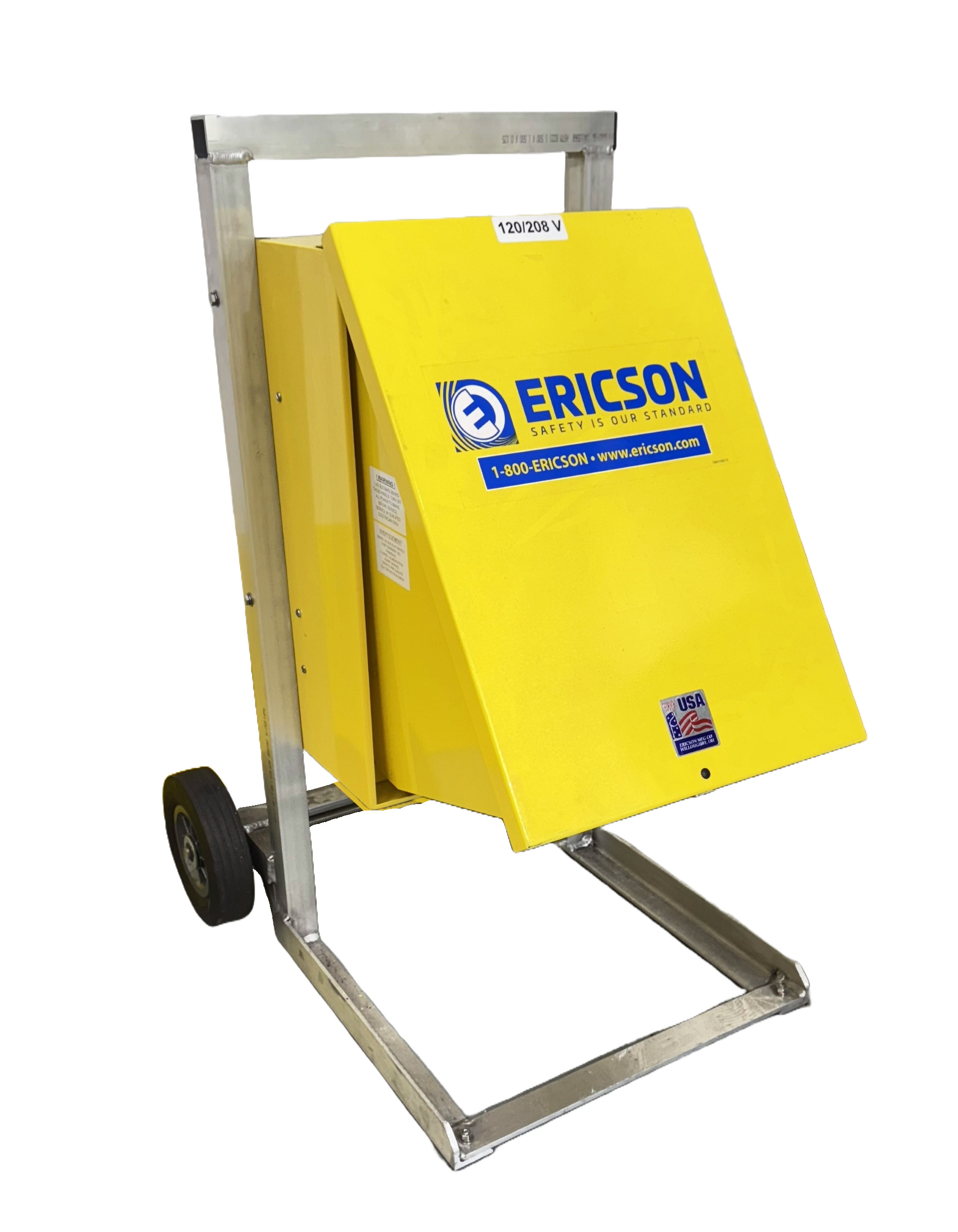

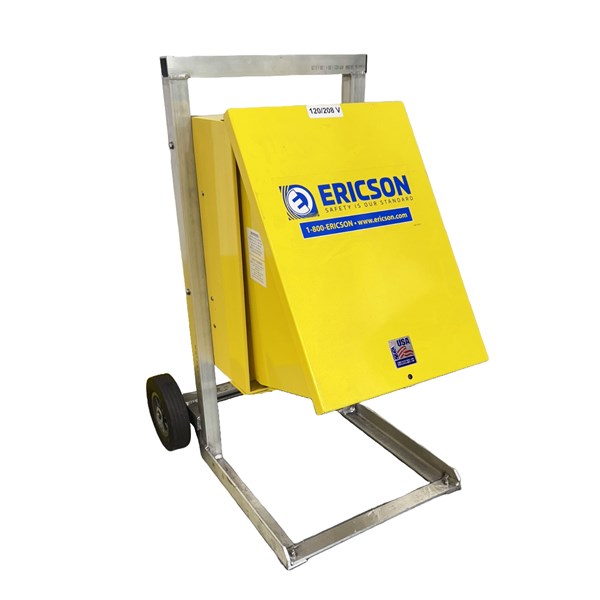

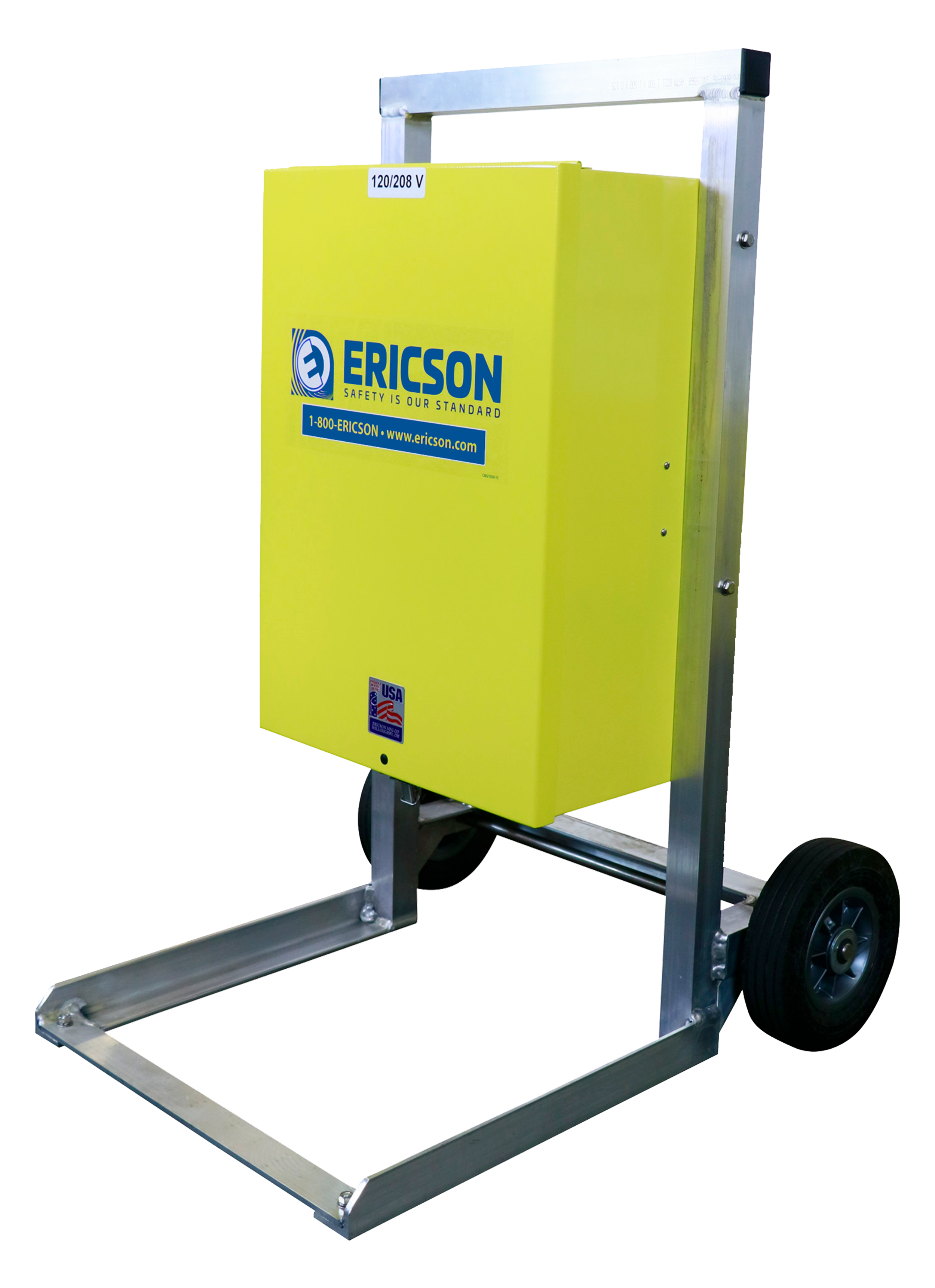

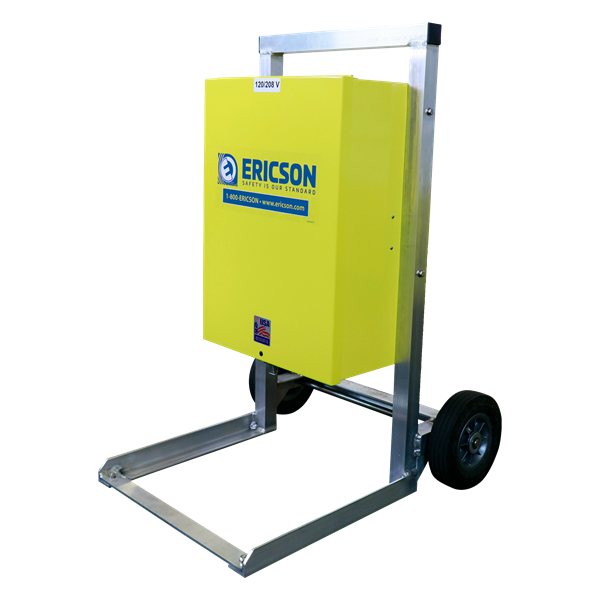

PDC - POWER DISTRIBUTION CENTER, 3PH 120Y208V 60A MLO 400A CAM IN/OUT (6) TT-30
• cETLus listed for U.S. and Canada
• Up to 200 Amp Capacity
• Feed-thru units (CAM2 Models) are rated 400 Amp w/ CAM set • Rugged corrosion resistant aluminum tubular 2-wheel frame
• 15-20 Amp GFCI Protection
• 120/208V, 120/240V, 480V, or 600V
• Single & 3-Phase Receptable Options
• NEMA 3R in-use
• UL943-5 Self-Testing GFCI Receptacle Compliance
• 15-20 Amp GFCI Protection
• UL1640 Compliant Open Neutral Protection
| Color | Yellow |
|---|---|
| Pallet Qty | 2 |
| UPC Code | 782862650301 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | PDC |
| Category | PDUs - Power Distribution Unit |
| Sub Category | PDC - Power Distribution Cart |
Other Resources
Technical Info
| Primary Cable End | CAMLOCK Recept (5 Male) |
|---|---|
| Primary Voltage | 120/208 |
| Phase | 3 |
| Secondary Voltage | 120/208 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | TT-30 |
| Receptacle A Qty | 6 |
| Feed Thru | Yes |
| Construction | Steel & Aluminum |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8537109170 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 180.00000 |
| Pallet Qty | 2 |
| Shipment Packaging Length (in) | 28 |
| Shipment Packaging Width (in) | 29 |
| Shipment Packaging Height (in) | 40 |
| Warranty | 1 Year |
