Part #:
EJR24330CM3061

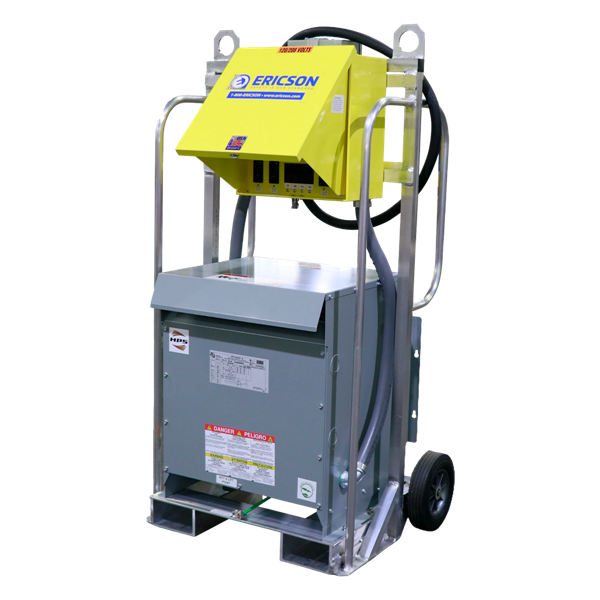

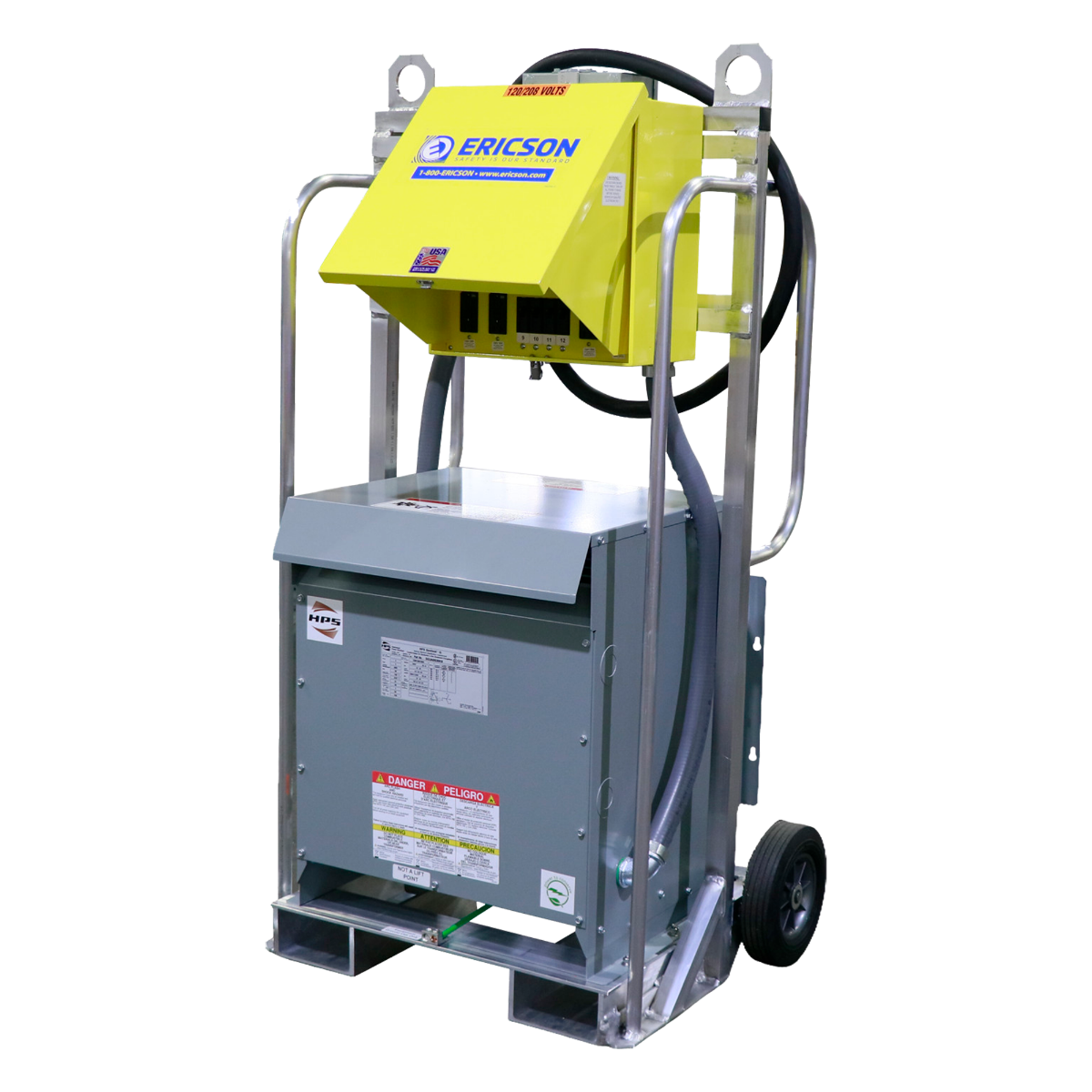

EJR2 480V 3PH 30KVA (6) 5-20 DUPLEX GFCI (1) CS6369
• ETLus listing pending
• 480V or 600V, 3 phase 60Hz power input
• 30kVA ventilared 3R transformer
• Output power options: 120Y/208V with 3-phase transformer
• NEMA 3R in-use combo enclosure with receptacles and breakers
• NEMA type 3R main disconnect switch
• Twist lock closure on rain guard panel
• 50A receptacle on select models
| Ideal Application | Any application that requires a reliable and safe transformation and distribution of electrical power. |
|---|---|
| Color | Aluminum |
| Pallet Qty | 1 |
| UPC Code | 782862927991 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | e-Cart Jr |
| Category | PTUs - Power Transformation |
| Sub Category | PTU - Transformer 2 Wheel Cart |
Other Resources
Technical Info
| Primary Input | Blunt 6' Cable |
|---|---|
| Primary Voltage | 480 |
| Phase | 3 |
| Transformer kVA | 30 |
| Secondary Voltage | 120/208 |
| Main Circuit Breaker | Yes, Main Circuit Breaker |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 6 |
| Receptacle B Type | CS6369 |
| Receptacle B Qty | 1 |
| Feed Thru | No |
| Construction | Aluminum frame, open |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8504320000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 400.00000 |
| Pallet Qty | 1 |
| Shipment Packaging Length (in) | 35 |
| Shipment Packaging Width (in) | 32.5 |
| Shipment Packaging Height (in) | 60.25 |
| Warranty | 1 Year |
