Part #:
F3123-25-515

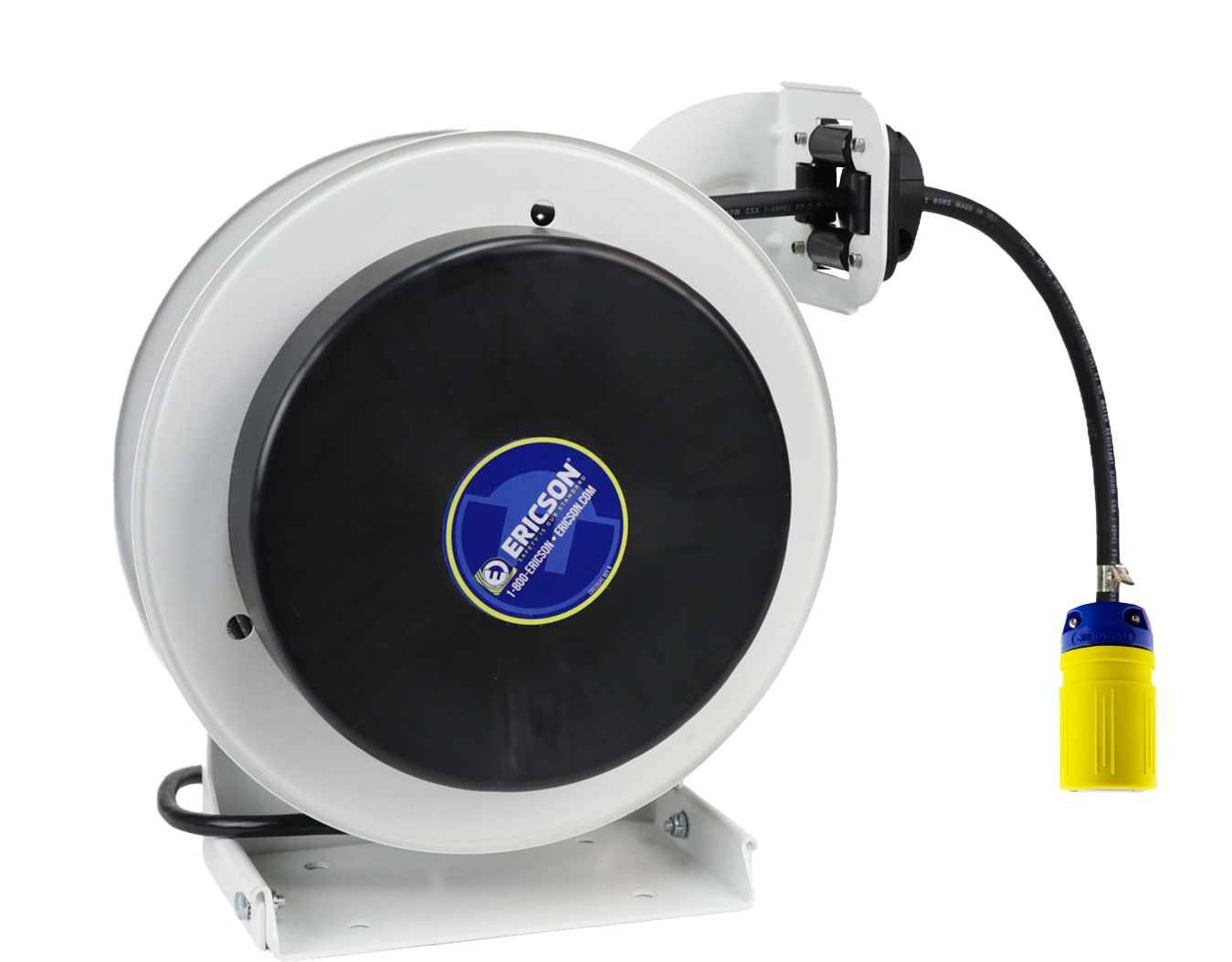

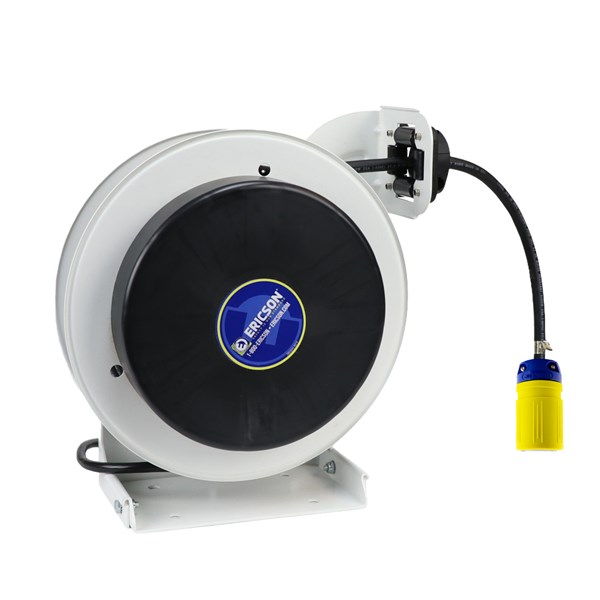

REEL, FLEX RIG, LIGHT INDUSTRIAL GRADE, RETRACTABLE 25 FT OF 12/3 SJOW CABLE W/ CONNECTOR NEMA 5-15C, PRIMARY FEEDER = PLUG NEMA 5-15 @ 6 FT
• Adjustable ball stop and locking ratchet
• Four-roller cable guide minimizes cable stress that extends the life of the cable
• Separate innovative mounting base plate offers flexibility in mounting options, attach one to a ceiling, wall, or bench
• cULus Listed
• Designed for indoor use, NEMA 2 rated
• 20 amp, 125-volt slip ring
• Six-foot primary feeder cord
• Adjustable ball stop & guide arm
• Ceiling, wall, or bench mounting
• Reinforced steel frame
• Black nylon molded slip cover
• Best-in-class, robust, long-life spring
• 2 Year Warranty
• Made in the USA
| Ideal Application | Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories to power tools, seasonal displays, machines, and light sources |
|---|---|
| Color | White & Black |
| UPC Code | 782862904206 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Flex Rig Reel |
| Category | Retractable Cable Reels |
| Sub Category | Light Industrial Grade |
Other Resources
Technical Info
| Reel Type | F3000 - Commercial Grade Duty (13" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 15 |
| Volts | 125 |
| Cable Length (ft) | 25 |
| AWG | 12 |
| Number of Conductors | 3 |
| Cable Type | SJOW |
| Primary Cable | Plug NEMA 5-15 @ 6 ft |
| Secondary Cable | Connector NEMA 5-15C |
| Finish | White Powder Coated Metal |
| Construction | Steel Frame and Nylon Construction |
| Environmental Rating | NEMA 2 |
Standards & Certifications
| UL | UL Listed to ANSI/UL 355, File E59949 |
|---|---|
| cUL | cUL Listed to CSA-C22.2 No.21, File E59949 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8479810000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 22.30000 |
| Shipment Packaging Length (in) | 20 |
| Shipment Packaging Width (in) | 16 |
| Shipment Packaging Height (in) | 9 |
| Warranty | 1 Year |
