Part #:
F3123-50-B20

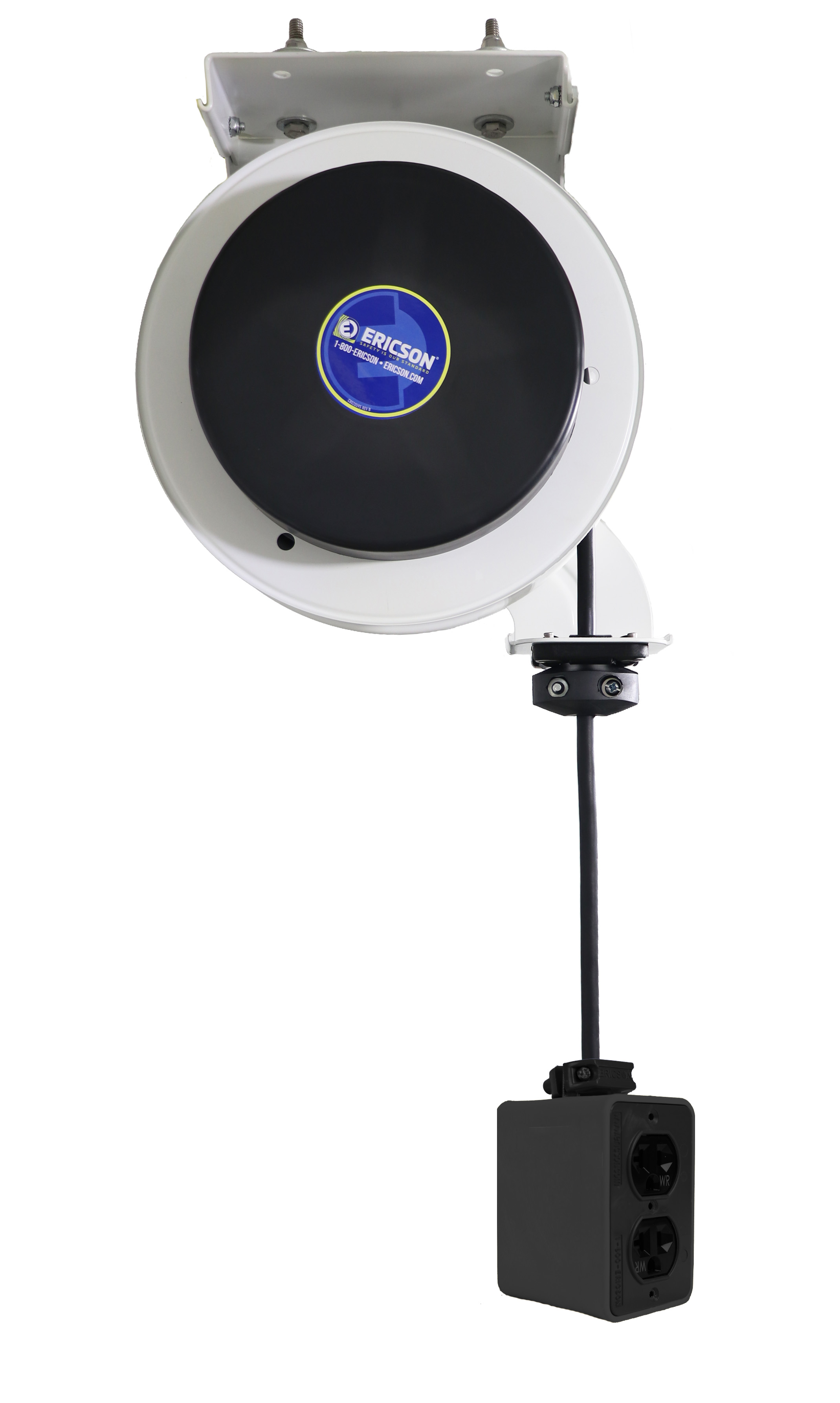

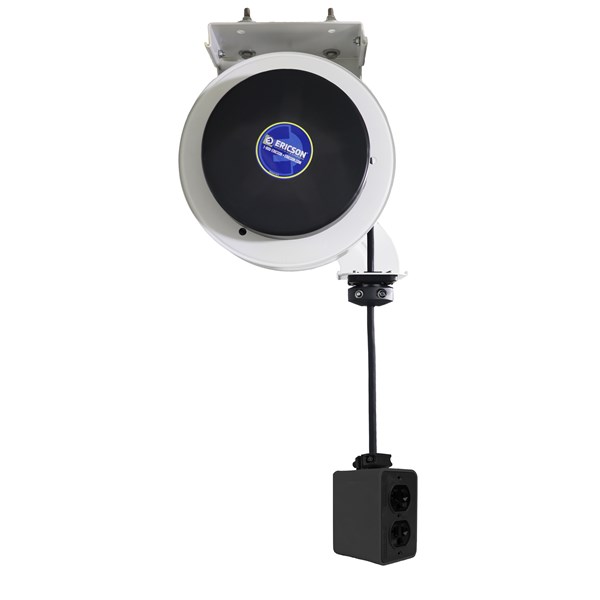

REEL, FLEX RIG, LIGHT INDUSTRIAL GRADE, RETRACTABLE 50 FT OF 12/3 SJOW CABLE W/ BLK OUTLET BOX W/ 2 NEMA 5-20R DUPLEXES, PRIMARY FEEDER = PLUG NEMA 5-20 @ 6 FT
• cULus Listed• Designed for indoor use, NEMA 2 rated• 20 amp, 125-volt slip ring• Six-foot primary feeder cord• Adjustable ball stop & guide arm• Ceiling, wall, or bench mounting• Reinforced steel frame• Black nylon molded slip cover• Best-in-class, robust, long-life spring• 2 Year Warranty• Made in the USA
| Ideal Application | Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories to power tools, seasonal displays, machines, and light sources |
|---|---|
| Color | White & Black |
| UPC Code | 782862905197 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Flex Rig Reel |
| Category | Retractable Cable Reels |
| Sub Category | Light Industrial Grade |
Other Resources
Technical Info
| Reel Type | F3000 - Commercial Grade Duty (13" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 20 |
| Volts | 125 |
| Cable Length (ft) | 50 |
| AWG | 12 |
| Number of Conductors | 3 |
| Cable Type | SJOW |
| Primary Cable | Plug NEMA 5-20 @ 6 ft |
| Secondary Cable | Outlet Box (6000) w/ 2 NEMA 5-20R Duplexes |
| Finish | White Powder Coated Metal |
| Construction | Steel Frame and Nylon Construction |
| Environmental Rating | NEMA 2 |
Standards & Certifications
| UL | UL Listed to ANSI/UL 355, File E59949 |
|---|---|
| cUL | cUL Listed to CSA-C22.2 No.21, File E59949 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8479810000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 27.50000 |
| Shipment Packaging Length (in) | 20 |
| Shipment Packaging Width (in) | 16 |
| Shipment Packaging Height (in) | 9 |
| Warranty | 1 Year |
