Part #:
3123-40-TT

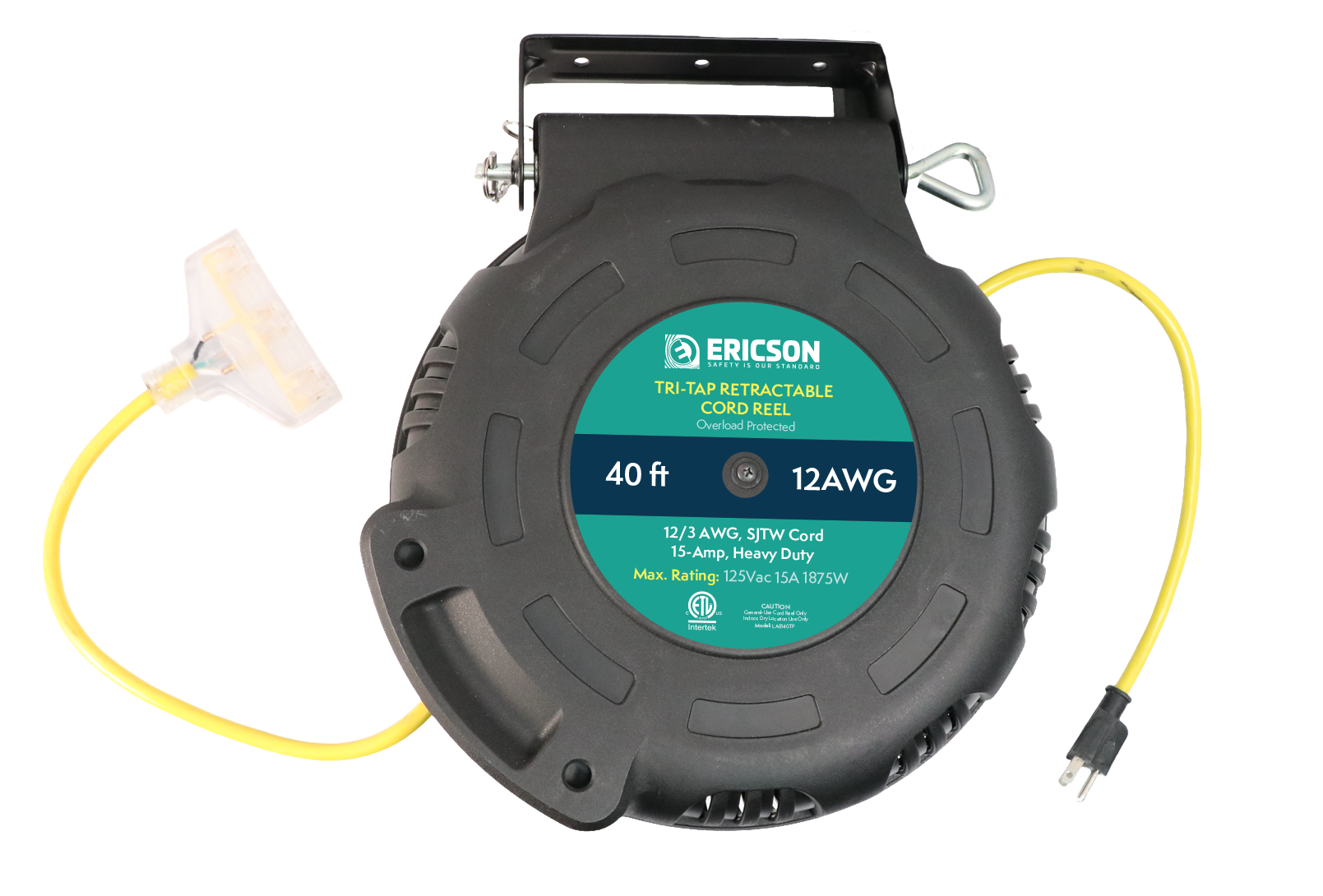

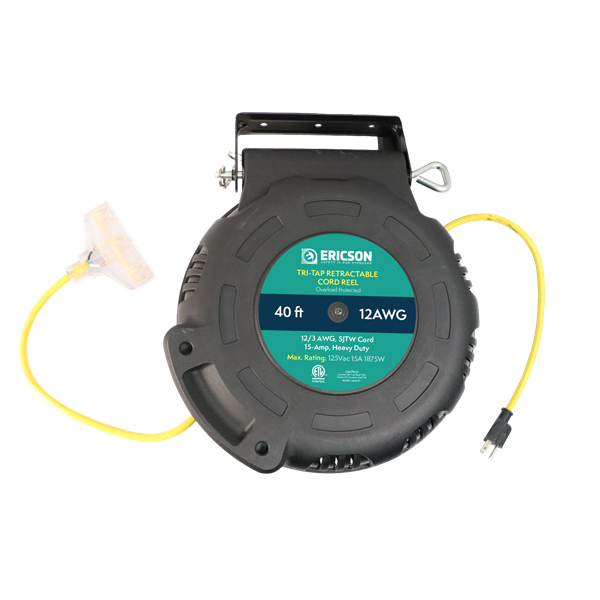

REEL LIGHT COMMERCIAL GRADE, RETRACTABLE 40 FT OF 12/3 SJTW CABLE W/ ILLUM TRI-TAP - (3) NEMA 5-15R, PRIMARY FEEDER = PLUG NEMA 5-15 @ 2 FT.
• cULus listed

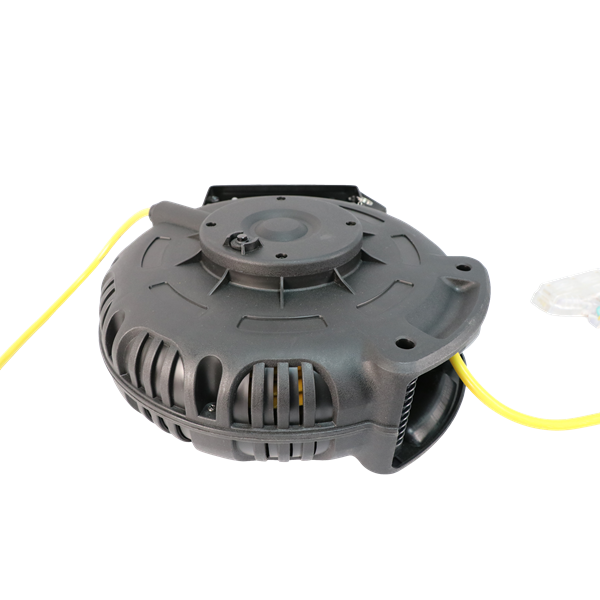

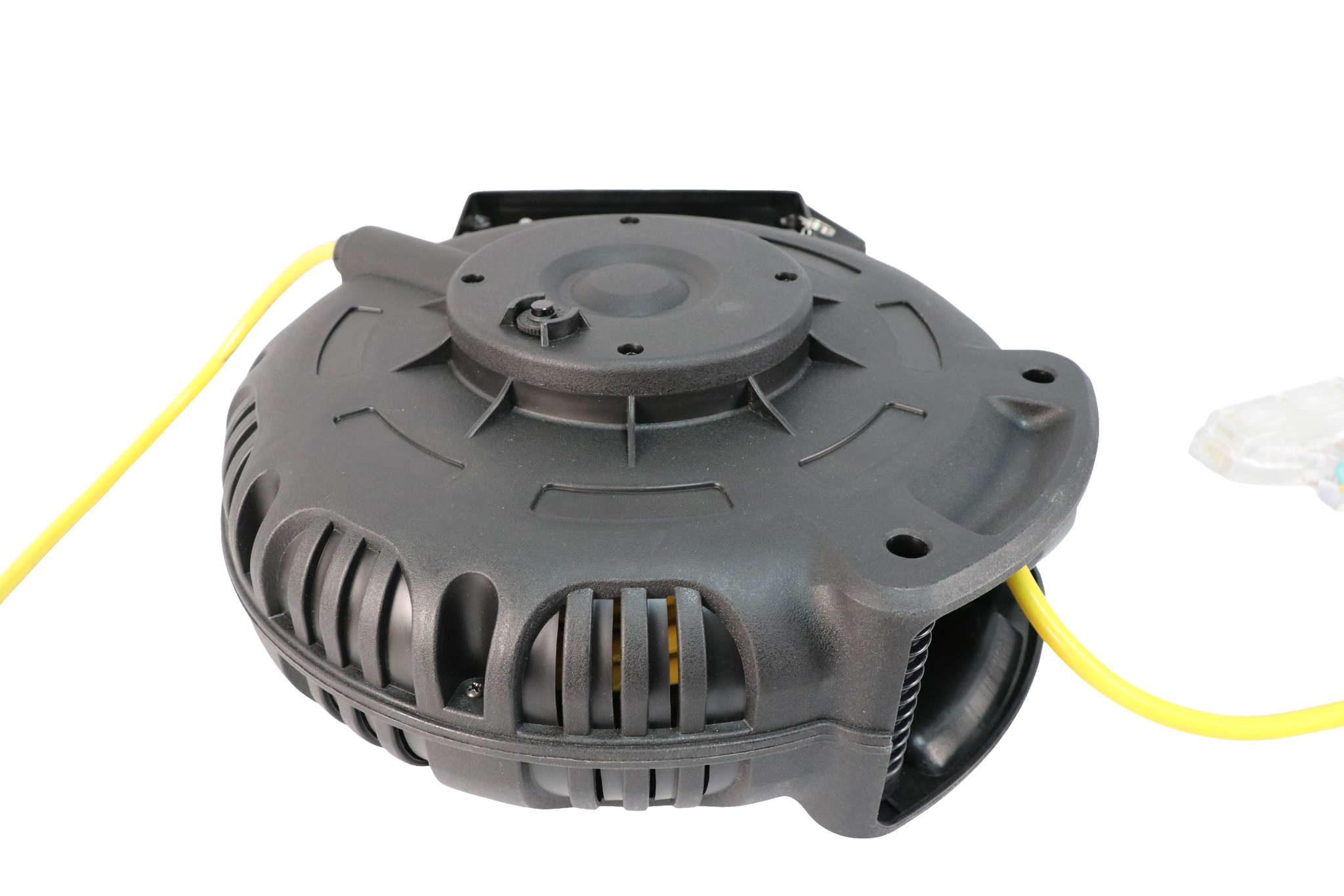

• Rugged non-metallic enclosure

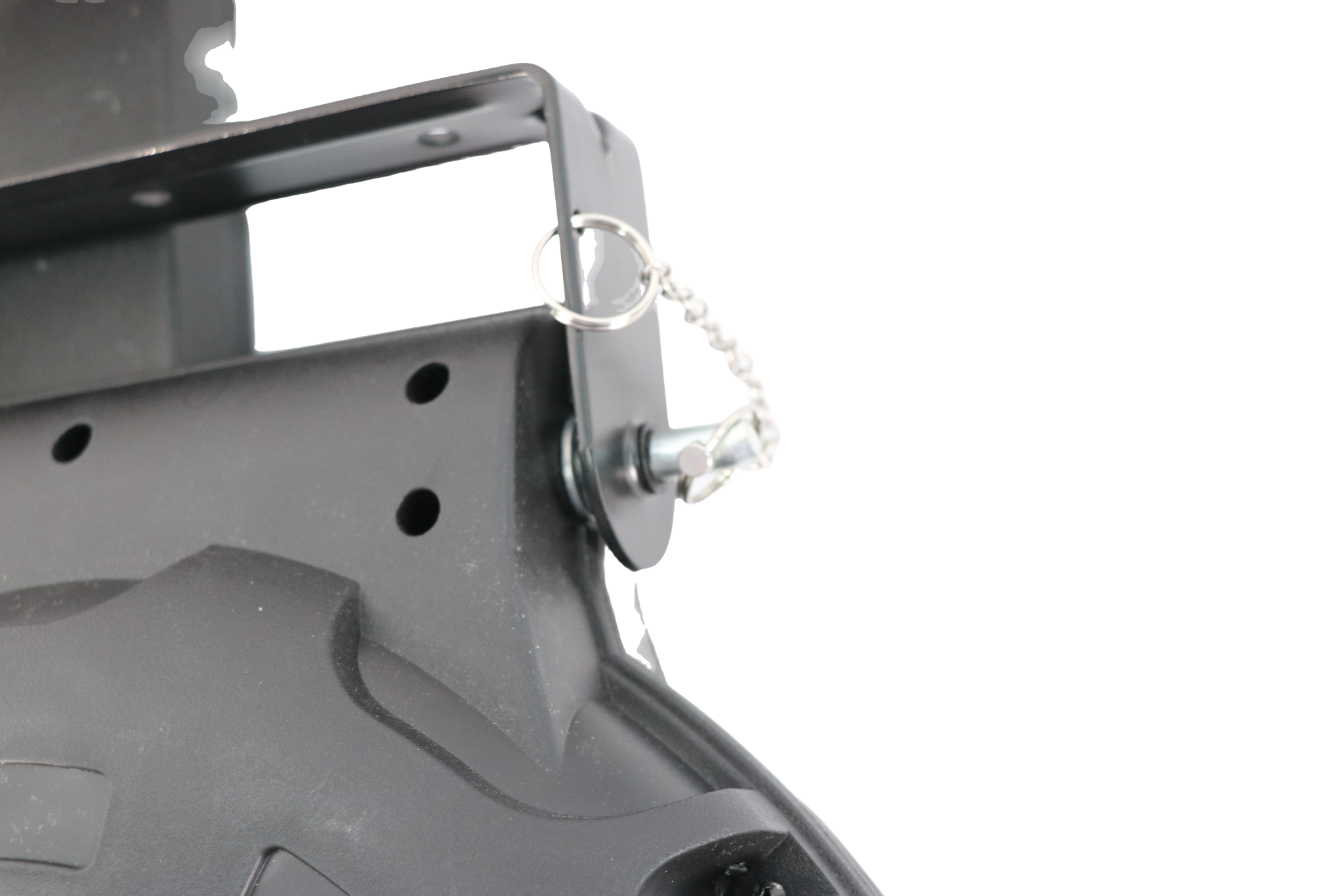

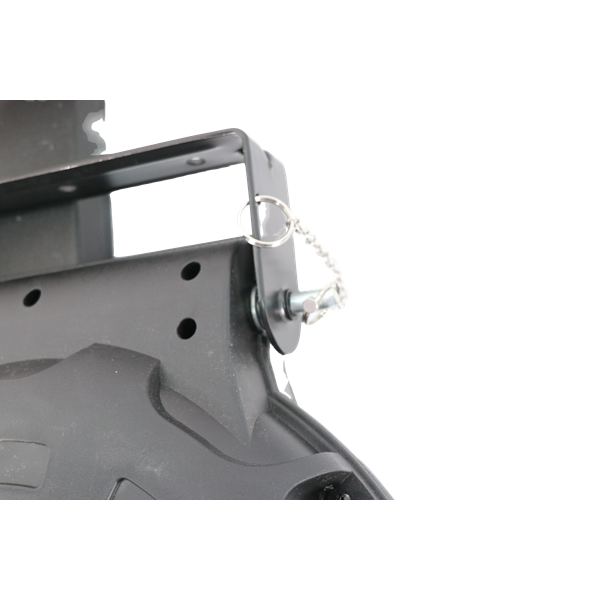

• Detachable swivel mounting bracket
• Rated at 125V, 14A, 1750W
• 14A push button breaker in reel housing
• 12/3 SJTW yellow cord, 105c rated
• Furnished with ball stop
• Lighted clear NEMA 5-15 triple tap
• 2ft primary cord with NEMA 5-15 plug
• For dry indoor locations only.
• Available with HL and 7 Series hand lamps
| Ideal Application | Ideal for residential and light commercial duty use |
|---|---|
| Color | Black |
| Pallet Qty | 48 |
| UPC Code | 782862930229 |
| Country of Origin | CHINA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Pow-R-Reel |
| Category | Retractable Cable Reels |
| Sub Category | Commercial Grade |
Other Resources
Technical Info
| Reel Type | 2900/3000 - Light Duty (11" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 15, 14 |
| Volts | 125 |
| Cable Length (ft) | 40 |
| AWG | 12 |
| Number of Conductors | 3 |
| Cable Type | SJTW |
| Primary Cable | Plug NEMA 5-15 @ 2 ft |
| Secondary Cable | Tri-Tap - (3) NEMA 5-15R |
| Finish | Black Plastic |
| Construction | Non-Metallic Housing |
| Environmental Rating | NEMA 2 |
Standards & Certifications
| cETL | cETL Listed to CSA C22.2 No. 42 |
|---|---|
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Case Qty | 2 |
| HTS code | 8544429090 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 16.00000 |
| Pallet Qty | 48 |
| Shipment Packaging Length (in) | 16.5 |
| Shipment Packaging Width (in) | 13.75 |
| Shipment Packaging Height (in) | 13.38 |
| Warranty | 1 Year |
