Part #:
6064-30

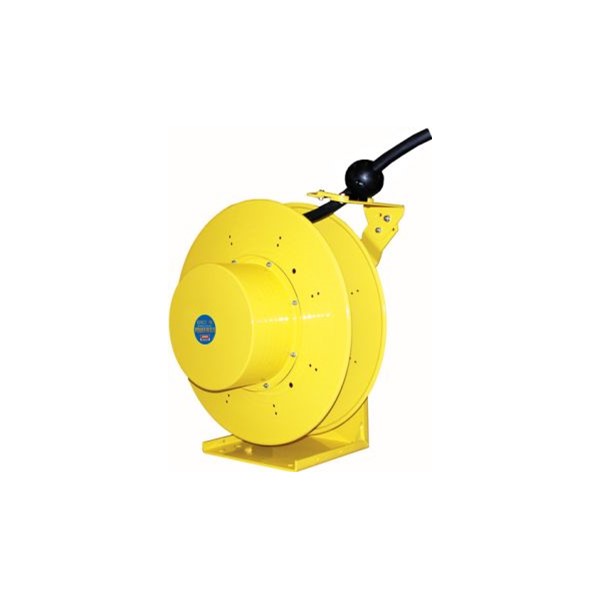

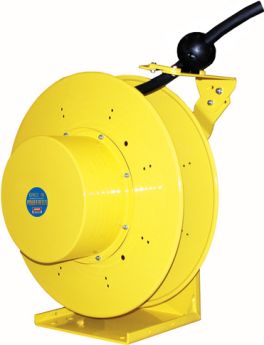

REEL INDUSTRIAL GRADE, RETRACTABLE 30 FT OF 6/4 TYPE W CABLE W/ BLUNT CABLE END, PRIMARY FEEDER = COILED WIRE LEADS @ 1-2 FT
| Ideal Application | Ideal for use in utility trucks, overhead cranes (classes A-C), hoists, aviation hangers, and automated material handling |
|---|---|
| Color | Yellow |
| Pallet Qty | 1 |
| UPC Code | 782862907764 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Pow-R-Reel |
| Category | Retractable Cable Reels |
| Sub Category | Industrial Grade - High Cap |
Other Resources
Technical Info
| Reel Type | 6000 - Heavy Industrial Duty (19" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 45 |
| Volts | 600 |
| Cable Length (ft) | 30 |
| AWG | 6 |
| Number of Conductors | 4 |
| Cable Type | Type W |
| Primary Cable | 1" NPT Female Feeder Hub for Field installation to Slip Ring |
| Secondary Cable | Blunt Cable End |
| Finish | Yellow Powder Coated Metal |
| Construction | Heavy-Duty All-Steel Construction |
| Environmental Rating | NEMA 4 |
Standards & Certifications
| UL | UL Listed to ANSI/UL 355, File E59949 |
|---|---|
| cUL | UL Listed to ANSI/UL355 and C22.2 No. 308, File E59949 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8479810000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 225.00000 |
| Pallet Qty | 1 |
| Shipment Packaging Length (in) | 31 |
| Shipment Packaging Width (in) | 31 |
| Shipment Packaging Height (in) | 30 |
| Warranty | 1 Year |
