Part #:
5143-40-B

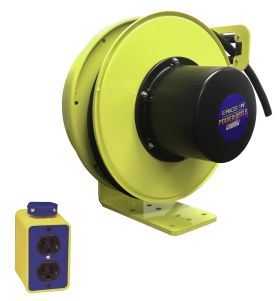

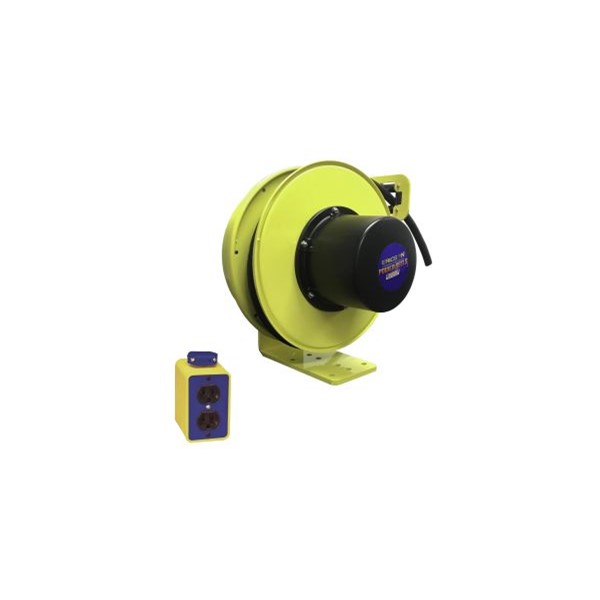

REEL INDUSTRIAL GRADE, RETRACTABLE 40 FT OF 14/3 SOW CABLE W/ OUTLET BOX W/ 2 NEMA 5-15R DUPLEXES, PRIMARY FEEDER = BLUNT CABLE END @ 1-2 FT
• Low-friction, 4-roller cable guide on guide arm
• Heavy duty formed steel stand
• Heavy all-steel construction with durable yellow powder coated finish
Listing: Blunt products UL listed and CSA certified
Flange Size: 14“ diameter
Construction: Heavy duty all-steel with durable yellow powder coated finish with nylon drum
• Black PVC Slip ring cover
• Formed steel stand with multiple mounting holes
• 4-roller cable guide–adjustable to one of 12 positions
• Ratchet can be engaged for positive lock or disengaged for constant tension
• Safety chain hole provided for overhead mounting
• Adjustable ball stop included
• Grounded slip ring assembly for safety
Termination: 6 ft. feeder cord
Cable Type: Installed with type black SOOW 600V cable
Available in 16/6, 16/8, 16/10, 16/12, 14/6, 14/8, 14/10, 12/3, 12/4, 12/6, 12/8, 10/3, 10/4, 10/6
Environmental: Rated NEMA 4 for indoor and outdoor
Electrical Ratings: Max rating of Slip Ring = 35A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, flop over guide arm kit, black or white cable, premium cable, or Perma-Kleen™ antimicrobial cable.
| Ideal Application | Ideal for all types of industrial power requirements - drop lights and receptacle boxes, extendable conveyor control cables, overhead hoists, truck cranes, ladder trucks, and utility trucks. |
|---|---|
| Color | Yellow |
| Pallet Qty | 12 |
| UPC Code | 782862850046 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Pow-R-Reel |
| Category | Retractable Cable Reels |
| Sub Category | Industrial Grade |
Other Resources
Technical Info
| Reel Type | 5000 - Industrial Duty (14" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 15 |
| Volts | 125 |
| Cable Length (ft) | 40 |
| AWG | 14 |
| Number of Conductors | 3 |
| Cable Type | SOW |
| Primary Cable | Blunt Cable End @ 1-2 ft |
| Secondary Cable | Outlet Box (6000) w/ 2 NEMA 5-15R Duplexes |
| Finish | Yellow Powder Coated Metal |
| Construction | Heavy-Duty Steel Construction w/ Nylon Hub |
| Environmental Rating | NEMA 2 |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8479810000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 64.00000 |
| Pallet Qty | 12 |
| Shipment Packaging Length (in) | 19 |
| Shipment Packaging Width (in) | 17 |
| Shipment Packaging Height (in) | 19 |
| Warranty | 1 Year |
