Part #:
4123-50

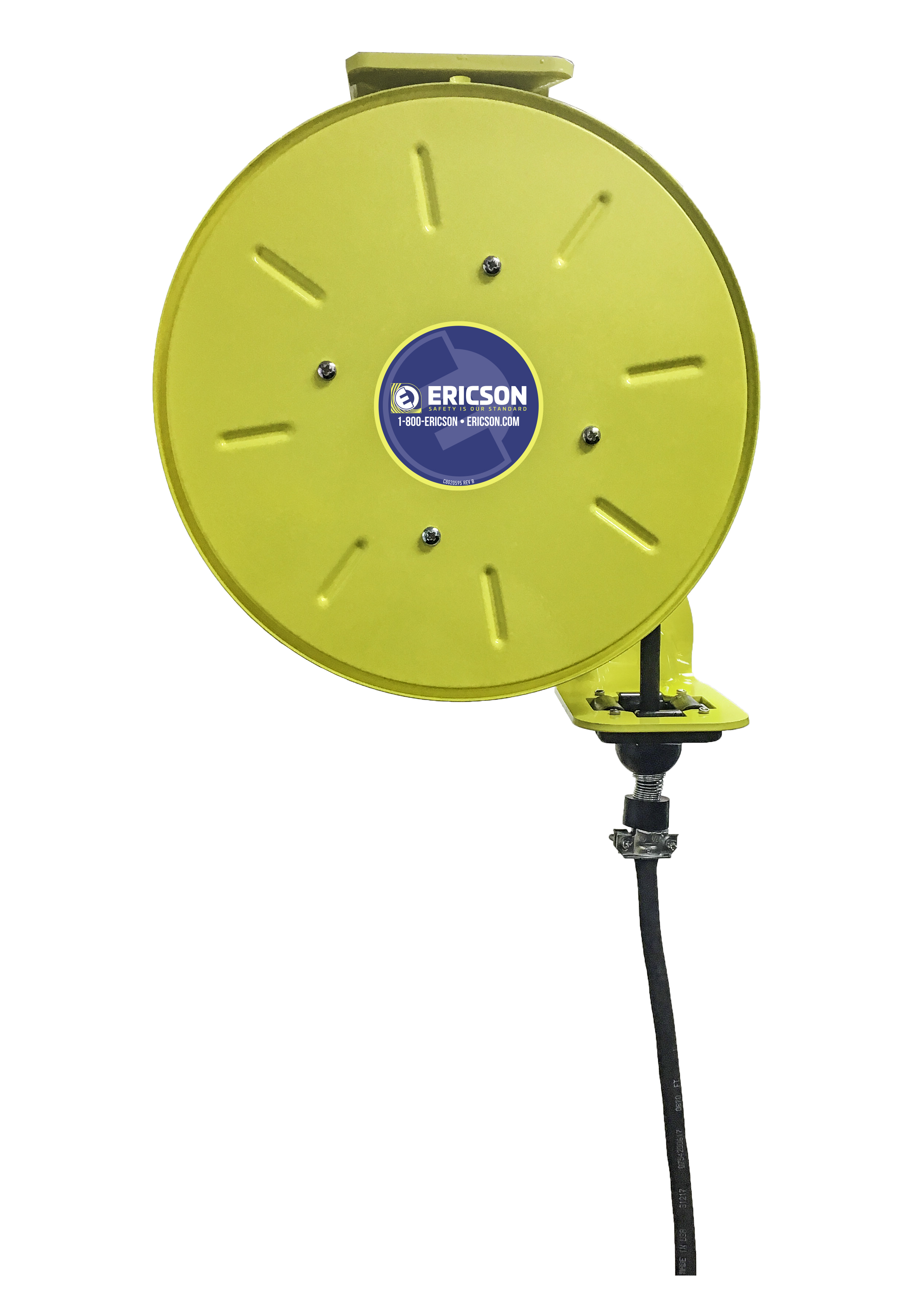

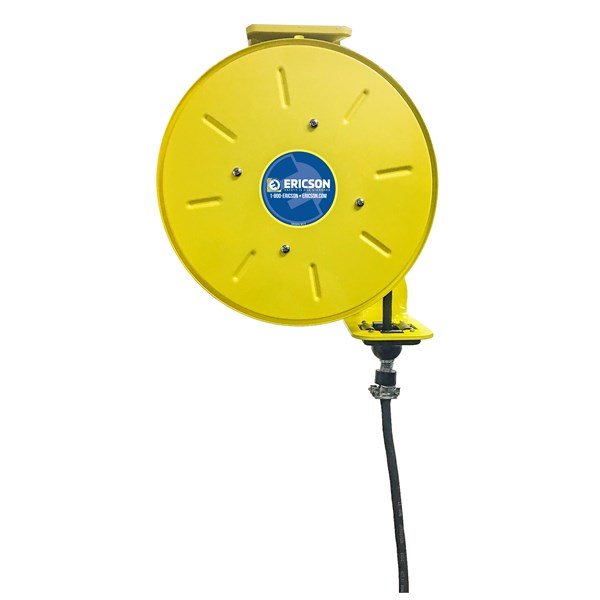

REEL INDUSTRIAL GRADE, RETRACTABLE 50 FT OF 12/3 SJOW CABLE W/ BLUNT CABLE END, PRIMARY FEEDER = PLUG NEMA 5-20 @ 6 FT
• Rated NEMA 4 for indoor and outdoor environments
• Adjustable ball stop included
• Heavy all-steel construction with durable yellow powder coated finish
Listing: UL listed and CSA certified
Flange Size: 12” diameter
Construction: Heavy all-steel with durable yellow powder coated finish
• Formed steel stand with multiple mounting holes
• 4-roller cable guide - adjustable to one of 12 positions
• Ratchet can be engaged for positive lock or disengaged for constant tension
• Safety chain hole provided for overhead mounting
• Adjustable ball stop included
• Grounded slip ring assembly for safety
Termination: 6 ft. feeder cord (3 conductor - molded plug, all others - blunt cable)
Cable Type: Installed with type SJOW/SJEOW 300V or SOOW 600V cable
Environmental: Reel housing is rated NEMA 4 for Indoor & Outdoor. Reel is derated to NEMA 2 with any reel attachment or with a molded plug on primary w/ SJ 3 conductor cable.
Electrical Ratings: Max rating of slip Ring = 30A, 600V
Options: Stretch or retrieve application, black or white powder coat finish, secondary attachments, pivot base, or Perma-Kleen™ antimicrobial cable
| Ideal Application | Ideal for heavier-duty applications such as drop lights, drop power, mobile equipment control cables, conveyor control cables, small cranes/hoists, and utility trucks |
|---|---|
| Color | Yellow |
| Pallet Qty | 24 |
| UPC Code | 782862818701 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Pow-R-Reel |
| Category | Retractable Cable Reels |
| Sub Category | Industrial Grade |
Other Resources
Technical Info
| Reel Type | 4000 - Light Industrial Duty (12" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 20 |
| Volts | 600 |
| Cable Length (ft) | 50 |
| AWG | 12 |
| Number of Conductors | 3 |
| Cable Type | SJOW |
| Primary Cable | Plug NEMA 5-20 @ 6 ft |
| Secondary Cable | Blunt Cable End |
| Finish | Yellow Powder Coated Metal |
| Construction | Heavy-Duty All-Steel Construction |
| Environmental Rating | NEMA 2 |
Standards & Certifications
| UL | UL Listed to ANSI/UL 355, File E59949 |
|---|---|
| CSA | CSA Certified to C22.2 No. 308, File 271857 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8479810000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 37.90000 |
| Pallet Qty | 24 |
| Shipment Packaging Length (in) | 20 |
| Shipment Packaging Width (in) | 16 |
| Shipment Packaging Height (in) | 11 |
| Warranty | 1 Year |
