Part #:
73FRK1

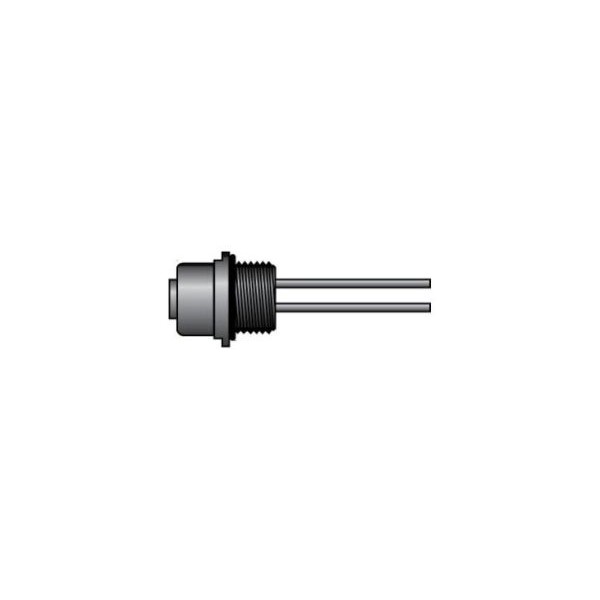

MICRO-SYNC DUAL KEY 1/4" NPT 3 POLE FEMALE RECEPTACLE
| Ideal Application | Typical applications include Automotive assembly, sensors on conveyors, pick n place robots, packaging machinery, automated machinery and material handling equipment. Products that typically use Micro-Sync connectors are proximity sensors, limit switches, photo cells, solenoids, and valves. |
|---|---|
| Color | Yellow |
| UPC Code | 782862892787 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Perma-Sync / Micro-Sync |
| Category | Receptacles |
| Sub Category | Female |
Other Resources
Technical Info
| Connector Type | Micro |
|---|---|
| Configuration Style | FR - Female Receptacle |
| # of Poles | 3 |
| Wiring Code | 1 = Green, 2 = Red/Black, 3 = Red/White |
| # of Keyways | Dual |
| Cable Length (ft) | 1 |
| Cable Type | 22 AWG 300VAC WIRE |
| Load Capacity (Amps) / Volts | 4A, 300VAC |
| Contact Material | Brass, Gold Plated over Nickel |
| Contact Carrier Material | Nitrile Rubber |
| Contact Sleeve Material | Zytel ST801 |
| Over molded Body Material | PVC |
| Coupling Nut Material | Machined Aluminum, Clear Anodized |
| Environmental Rating | IP68, NEMA 6P |
Standards & Certifications
| UR | UR Recognized Component to ANSI/UL 2238, File E195472 |
|---|---|
| cUR | cUR Recognized Component to CSA-C22.2 No. 182.3, File E195472 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.20000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
