Part #:
86FRC

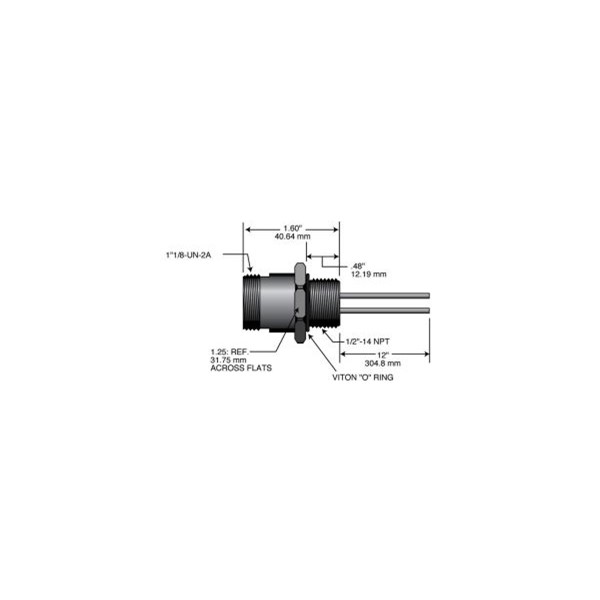

MINI-SYNC RECEPTACLE FEMALE STRAIGHT 6 POLE (A SIZE) 1FT LEADS PVC
| Ideal Application | Typical applications include sensors on conveyors, automated assembly equip, robotics, packaging machinery, Bus systems, and Transportaion equipment Products that typically use Mini-Sync connectors are proximity sensors, limit switches, photo cells, valves, tools, foot operated switches, crane/hoist controls. |
|---|---|
| Color | Black |
| UPC Code | 782862882757 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Perma-Sync / Mini-Sync |
| Category | Receptacles |
| Sub Category | Female |
Other Resources
Technical Info
| Connector Type | Mini |
|---|---|
| Configuration Style | FR - Female Receptacle |
| # of Poles | 6 |
| Wiring Code | 1 = White, 2 = Red, 3 = Green, 4 = Orange, 5 = Black, 6 = Blue |
| # of Keyways | Single |
| Cable Length (ft) | 1 |
| Cable Type | 16 AWG 600VAC WIRE |
| Load Capacity (Amps) / Volts | 8A, 600VAC |
| Contact Material | Brass, Gold Plated over Nickel |
| Contact Carrier Material | Nitrile Rubber |
| Contact Sleeve Material | Stainless Steel |
| Over molded Body Material | PVC |
| Coupling Nut Material | Machined Aluminum, Black Anodized |
| Environmental Rating | IP68, NEMA 6P |
Standards & Certifications
| UR | UR Recognized Component to ANSI/UL 2238, File E195472 |
|---|---|
| cUR | cUR Recognized Component to CSA-C22.2 No. 182.3, File E195472 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.20000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
