Part #:
5506-2

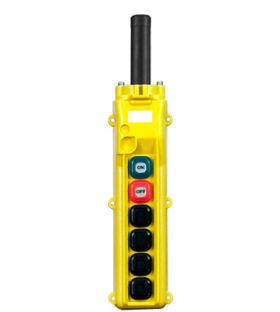

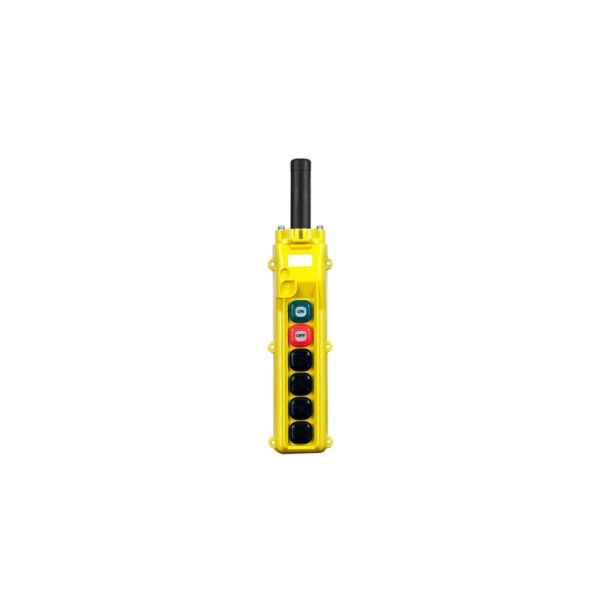

PENDANT STATION, COMMERICAL GRADE, 6 BUTTONS, (1) MAINTAINED ON/OFF BUTTON 1 NO (55S01), (2) 2 SPEED MOMENTARY BUTTONS 2 NO / 2 NO (55S15)
• NEMA rated 1, 3, 4, 4X and 12 (depending on model) • IP65 suitability enclosure ratings • Available in 2 to 12 button configurations• Single, 2-speed, and 3-speed models available • Neoprene boots surround buttons to seals out dirt and moisture• 2-piece enclosure simplifies field wiring • Soft pressure and positive indent switches provide optimum tactile feedback so you can feel when switch has been engaged• Contacts rated at 5A/120VAC and 5A/240VAC • 2 Amps at 12V/24DC • Up to 100 G shock resistance • Ambient temperature rated 5°F to 160° F (-15° to 70°C) operation (model 5503 rated to 50°C/122°F)
| Ideal Application | Pendant stations are used to control industrial cranes and hoists. They are also able to be used as the remote control for industrial machines. Pendant control stations are specifically designed for lifting and handling applications, as they enable direct line-of-sight control of motors. |
|---|---|
| Color | Yellow |
| UPC Code | 782862561720 |
| Country of Origin | TAIWAN |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Pendant Control |
| Category | Pushbutton Pendant Stations |
| Sub Category | Pendant Assembled |
Other Resources
Technical Info
| Pendant Cable Range (in) | 0.31 - 0.83 |
|---|---|
| Current Rating (Amps) | 5A |
| Volts | 240 |
| # of Switches/Operators | 6 |
| Shock Resistance | 100g |
Standards & Certifications
| UL | UL Listed to ANSI/UL 508, File E508597 |
|---|---|
| cUL | cUL Certified to CSA-C22.2 No. 14, File E508597 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536509033 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 1.30000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 6 |
| Warranty | 1 Year |
L1000834 - Ericson MFG Literature Sheet Crane Pendants
