Part #:
XG2-12-2TT

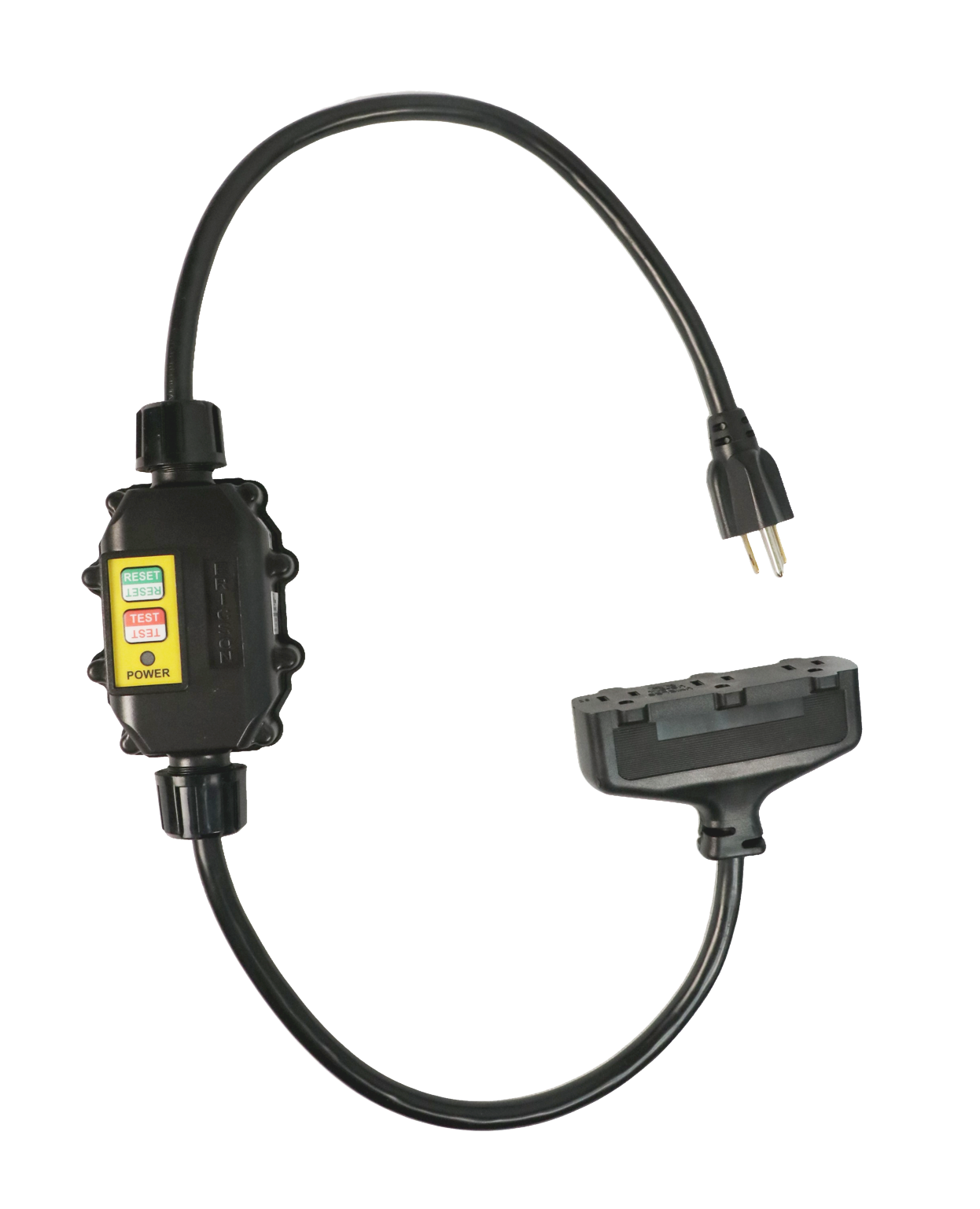

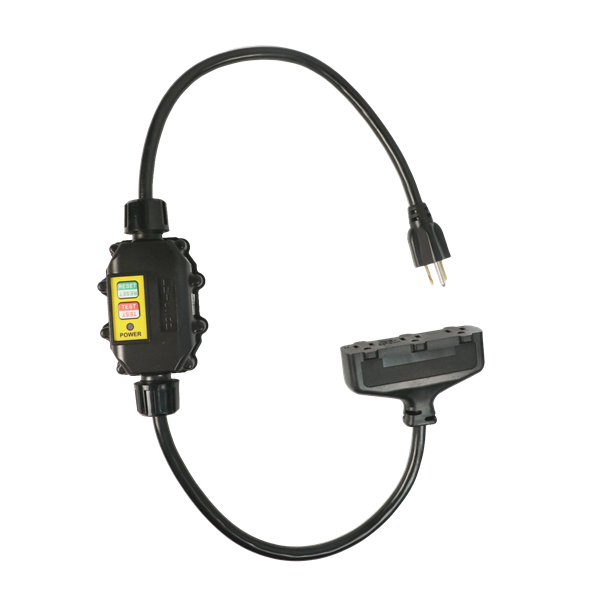

GFCI PORTABLE, 15A AUTO, 2FT INDUSTRIAL GRADE INLINE 6P ENCLOSURE 6P ENCLOSURE, PRI: 5-15P & SEC: 5-15C TRI-TAP
• cULus listed for use in U.S. and Canada. • Work site open-neutral protection compliant• Enhanced immunity to nuisance tripping• Fully sealed NEMA 6P submersible enclosure• NEMA 4X and 6P configurations• Rugged, impact resistant construction• 15A and 20A models available• 1.5 HP switch rating• Immune to corrosive environments• Superior strain relief• Automatic and manual power-up options available• Oversized test and reset buttons• Hazardous location plugs are available as facility adapters• Wide variety of plugs, connectors, and outlet receptacles
| Ideal Application | Use a portable GFCI device when working in wet environments or anytime you're using electric power tools in close proximity to water. |
|---|---|
| Color | Black |
| Pallet Qty | 480 |
| UPC Code | 782862794777 |
| Country of Origin | CHINA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | XG2 |
| Category | GFCIs |
| Sub Category | Industrial Grade - Inline |
Other Resources
Technical Info
| Power ON Style | AUTO |
|---|---|
| Load Capacity (Amps) | 15 |
| Watts | 1800 |
| Cable Length (ft) | 2 |
| Connector or Receptacle Type | 5-15P, 5-15C TRI-TAP |
| Environmental Rating | NEMA 6P Enclosure |
Standards & Certifications
| ETL | ETL Listed to ANSI/UL 943 file 220400124SHA-001 |
|---|---|
| cETL | ETL Listed to CSA-C22.2 No. 144.1 file 220400124SHA-001 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Case Qty | 20 |
| HTS code | 8536308000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 1.50000 |
| Pallet Qty | 480 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
L1000891 - Ericson MFG Literature Sheet GFCI Solutions Guide
