Part #:
XG2-12-2BW-15-UGP15231

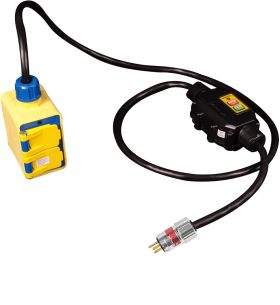

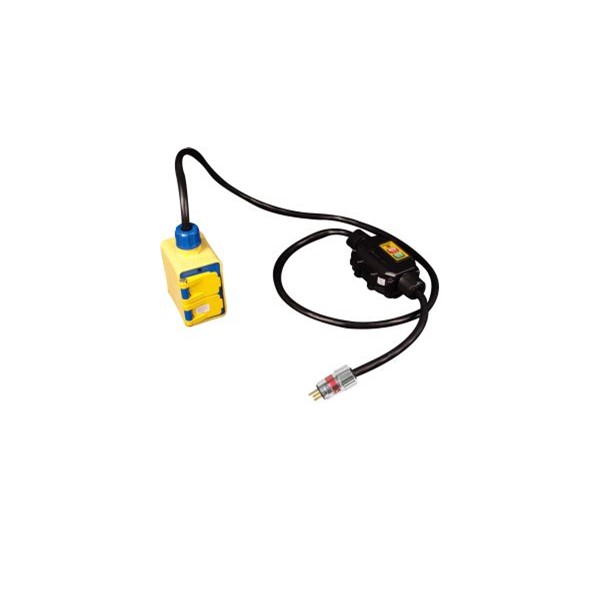

GFCI PORTABLE, 15A AUTO, 2FT INDUSTRIAL GRADE INLINE W/ OUTLET BOX, FLIP LIDS, & XP WIRING DEVICE, PRI: UGP15231 & SEC: 5-20R DUPLEX
• cULus listed for use in U.S. and Canada. • Work site open-neutral protection compliant• Enhanced immunity to nuisance tripping• Fully sealed NEMA 6P submersible enclosure• NEMA 4X and 6P configurations• Rugged, impact resistant construction• 15A and 20A models available• 1.5 HP switch rating• Immune to corrosive environments• Superior strain relief• Automatic and manual power-up options available• Oversized test and reset buttons• Hazardous location plugs are available as facility adapters• Wide variety of plugs, connectors, and outlet receptacles
| Ideal Application | Use a portable GFCI device when working in wet environments or anytime you're using electric power tools in close proximity to water. |
|---|---|
| Color | Black |
| UPC Code | 782862926598 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | XG2 |
| Category | GFCIs |
| Sub Category | HAZLOC Adapter - Inline |
Other Resources
Technical Info
| Power ON Style | AUTO |
|---|---|
| Load Capacity (Amps) | 15 |
| Watts | 1800 |
| Cable Length (ft) | 2 |
| Connector or Receptacle Type | 5-15P HAZ LOC, 5-20R DPLX (2) |
| Environmental Rating | NEMA 6P Enclosure |
Standards & Certifications
| ETL | ETL Listed to ANSI/UL 943 file 220400124SHA-001 |
|---|---|
| cETL | ETL Listed to CSA-C22.2 No. 144.1 file 220400124SHA-001 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536308000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 2.70000 |
| Warranty | 1 Year |
