Part #:
320P5S

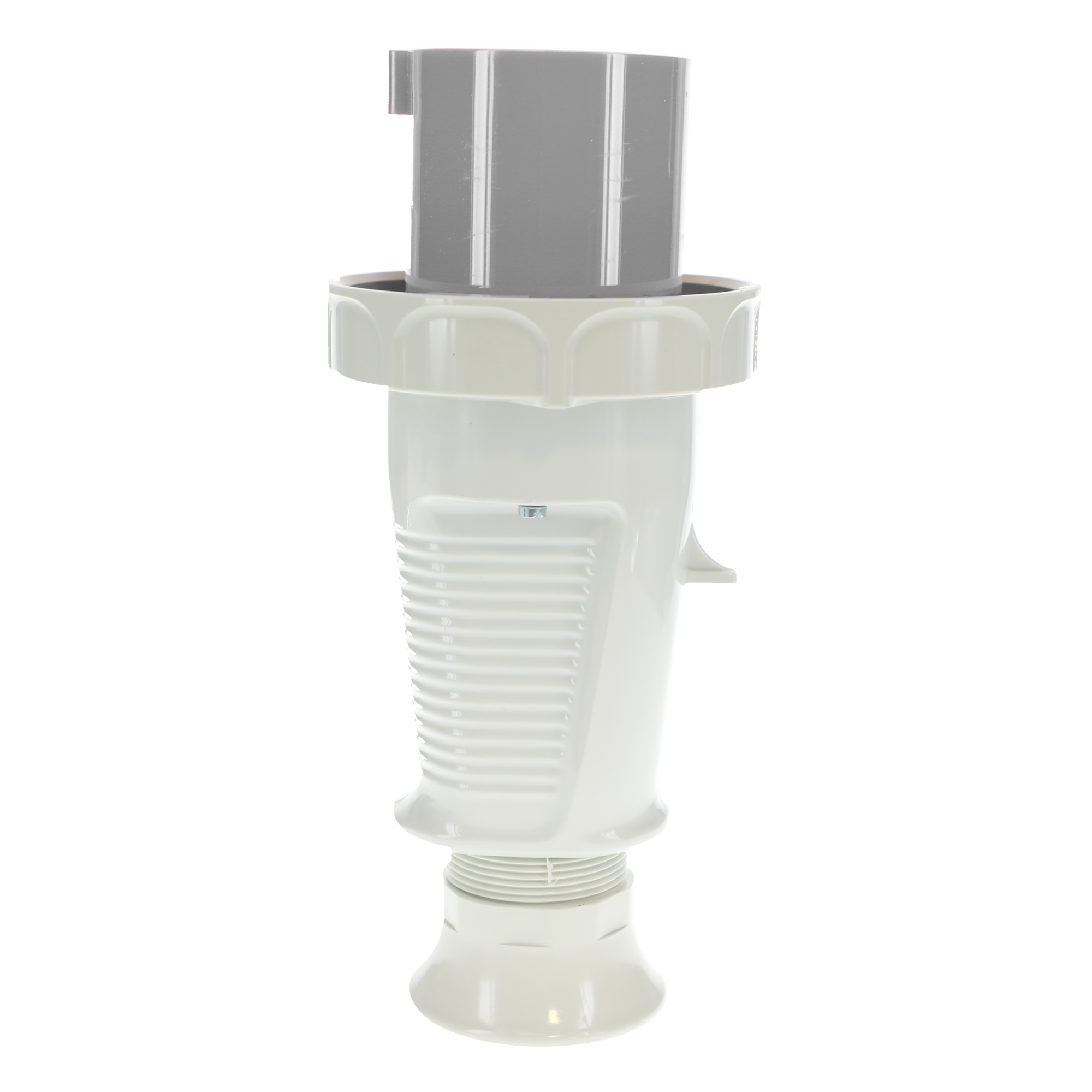

IEC 309 PIN & SLEEVE PLUG, 20A 277V 1PH 2P/3W, SPLASH PROOF (IP44)
| Ideal Application | Splash-proof (IP44) devices are suitable and recommended for use in a variety of light industrial environments and provide complete protection against contact with live parts, damaging deposits of dirt and dust and splashing water. Splashproof devices provide many of the heavy duty construction features found in the watertight products, but at a more economical cost |
|---|---|
| Color | Gray & Gray |
| UPC Code | 782862931325 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | IEC 309 |
| Category | Wiring Devices |
| Sub Category | IEC - Splash Proof |
Other Resources
Technical Info
| Device Type | Plug |
|---|---|
| Blade Style | 5 = Female Ground Clock Position |
| NEMA Configuration | IEC 309 Pin & Sleeve |
| Amps | 20 |
| Voltage | 277 |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Splash proof (IP44), IP44 |
Standards & Certifications
| UL | Listed to UL1682 |
|---|---|
| cUL | Certified to CSA-C22.2 No. 182.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| HTS code | 8536694020 |
|---|---|
| ECCN | EAR99 |
| Gross Weight (lbs) | 2.00000 |
| Shipment Packaging Length (in) | 10 |
| Shipment Packaging Width (in) | 10 |
| Shipment Packaging Height (in) | 10 |
| Warranty | 1 Year |
