Part #:
3100B6W

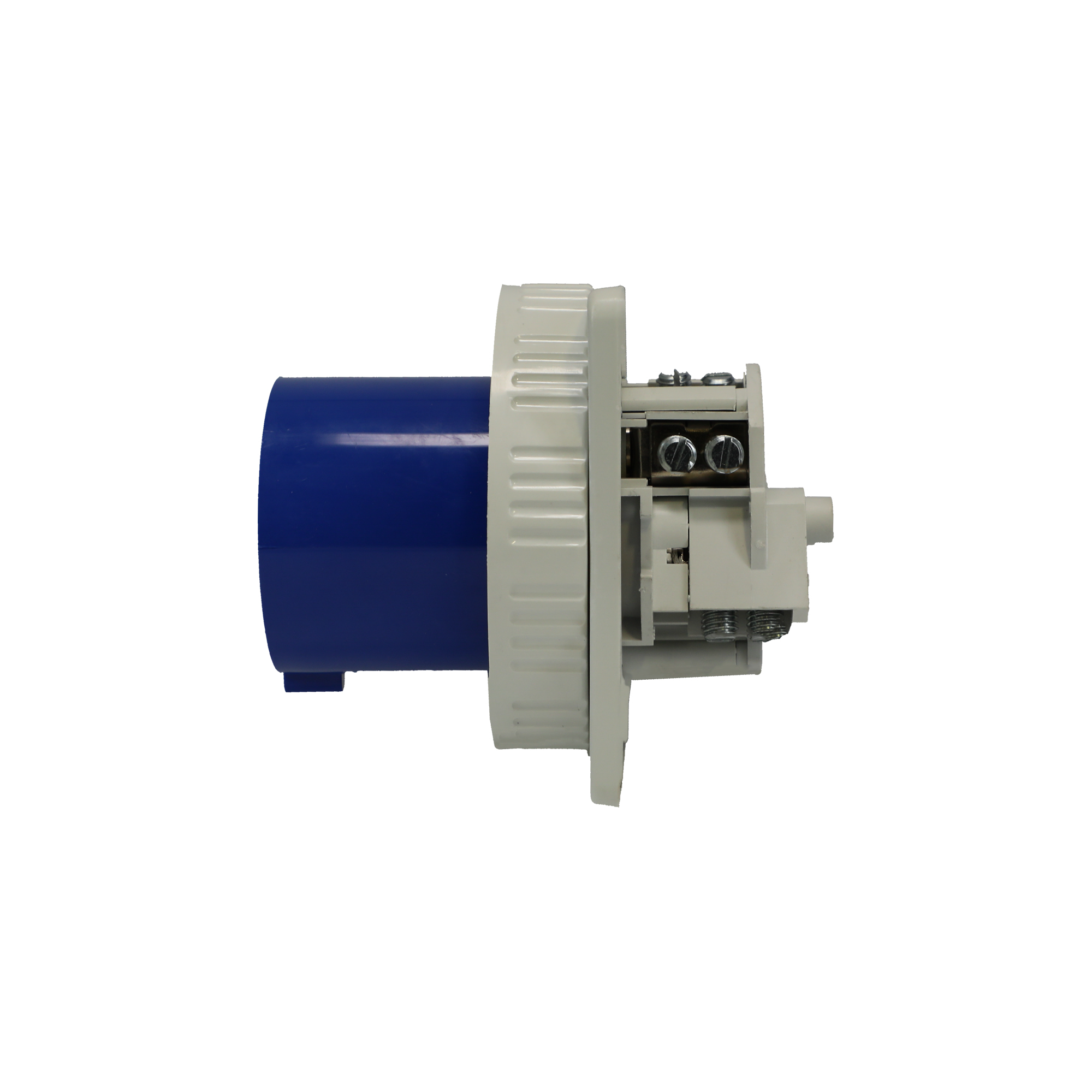

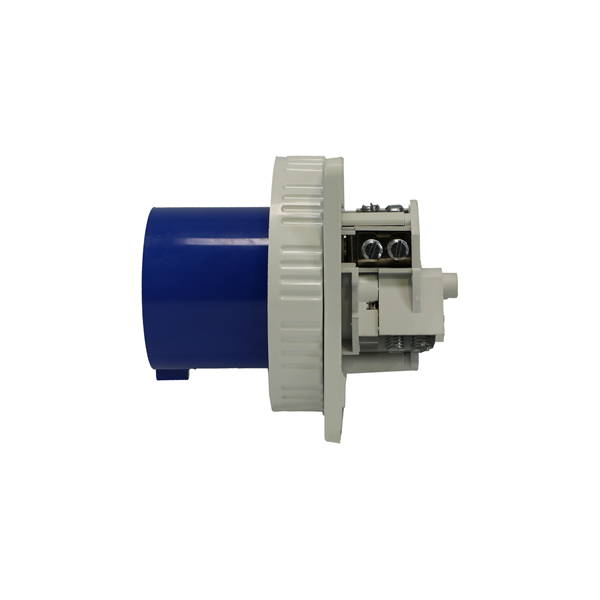

IEC 309 PIN & SLEEVE STRAIGHT INLET, 100A 250V 1PH 2P/3W, WATERTIGHT (IP67)
| Ideal Application | Watertight (IP67) devices are designed for use in the most demanding environments that require safety, ease of use reliability and durability. These devices can withstand impact and vibration and provide complete protection against dirt, dust, water jets and even temporary flooding |
|---|---|
| Color | Blue & Gray |
| UPC Code | 782862913574 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | IEC 309 |
| Category | Wiring Devices |
| Sub Category | IEC - Watertight |
Other Resources
Technical Info
| Device Type | Inlet |
|---|---|
| Blade Style | 6 = Female Ground Clock Position |
| NEMA Configuration | IEC 309 Pin & Sleeve |
| Amps | 100 |
| Voltage | 250 |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| WD_CSConfig_c | Straight |
| Environmental Rating | Watertight (IP67), IP67 |
Standards & Certifications
| UL | Listed to UL1682 |
|---|---|
| cUL | Certified to CSA-C22.2 No. 182.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| HTS code | 8536694020 |
|---|---|
| ECCN | EAR99 |
| Gross Weight (lbs) | 2.00000 |
| Shipment Packaging Length (in) | 8 |
| Shipment Packaging Width (in) | 8 |
| Shipment Packaging Height (in) | 8 |
| Warranty | 1 Year |
