Part #:
2830-FS10

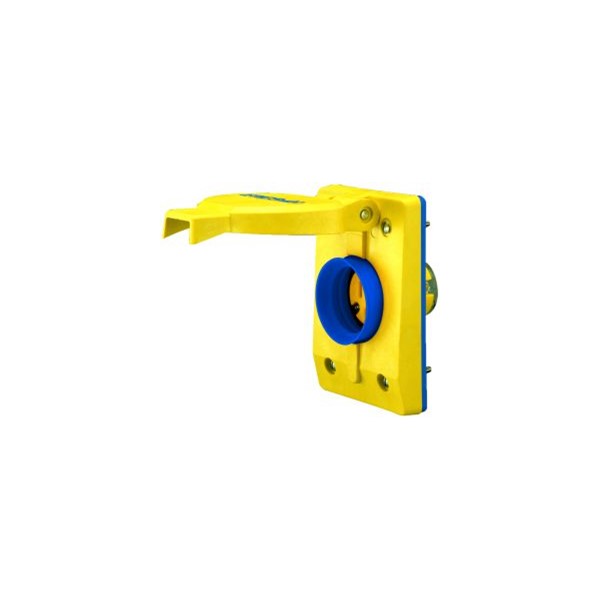

SINGLE FLIP LID FEMALE RECEPTACLE W/ FS COVERPLATE, W/ WATER TIGHT NEMA L5-30R
| Color | Yellow |
|---|---|
| UPC Code | 782862587898 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | FS & FD Cover |
| Category | FS & FD Weatherproof covers |
| Sub Category | Single Receptacle w/ Cover |
Other Resources
Technical Info
| Blade Style | Locking |
|---|---|
| NEMA Configuration | NEMA L5-30R |
| Amps | 30A |
| Voltage | 125V |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Outdoor |
Standards & Certifications
| UL | UL Listed to ANSI/UL 498, File E107792 |
|---|---|
| CSA | CSA Certified to CSA C22.2 N.42, File 31943 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.80000 |
| Shipment Packaging Length (in) | 8 |
| Shipment Packaging Width (in) | 8 |
| Shipment Packaging Height (in) | 6 |
| Warranty | 1 Year |
L1000883 - Ericson FS Style Receptacles Covers & Boxes
