Part #:
2705-L142

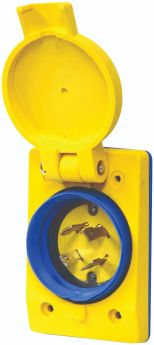

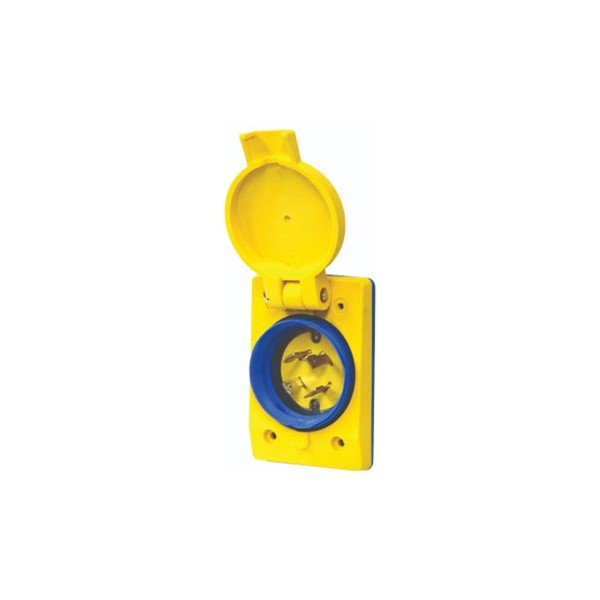

SINGLE FLIP LID MALE INLET W/ FS COVERPLATE, W/ WATER TIGHT NEMA L14-20P, MATING CONNECTOR DIAMETER = 2 1/8" MAX
| Color | Yellow |
|---|---|
| UPC Code | 782862870907 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | FS & FD Cover |
| Category | FS & FD Weatherproof covers |
| Sub Category | Single Receptacle w/ Cover |
Other Resources
Technical Info
| Blade Style | Locking |
|---|---|
| NEMA Configuration | NEMA L14-20P |
| Amps | 20A |
| Voltage | 125/250V |
| Phase | 1 |
| Poles / Wires | 3P/4W |
| Environmental Rating | Outdoor |
Standards & Certifications
| UL | UL Listed to ANSI/UL 498, File E107792 |
|---|---|
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.80000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
