Part #:
1520-PW6P-AM

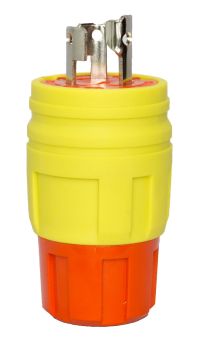

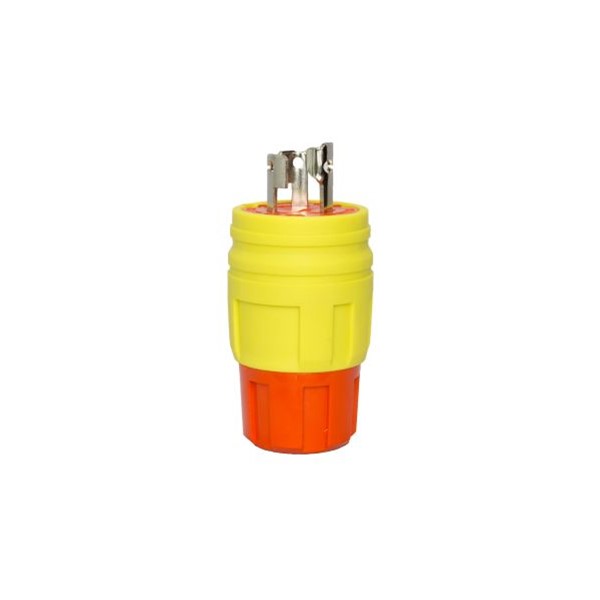

PLUG NEMA L5-15, PERMA-KLEEN ANTIMICROBIAL, IP69K WATERTIGHT YELLOW WIRING DEVICE, LOCKING 15 AMP 125V 1PH 2P/3W, SIZE = SM, 24W47
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
|---|---|
| Color | Yellow |
| UPC Code | 782862899748 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Perma-Kleen |
| Category | Wiring Devices |
| Sub Category | Antimicrobial, Watertight |
Other Resources
Technical Info
| Device Type | Plug |
|---|---|
| Blade Style | Locking |

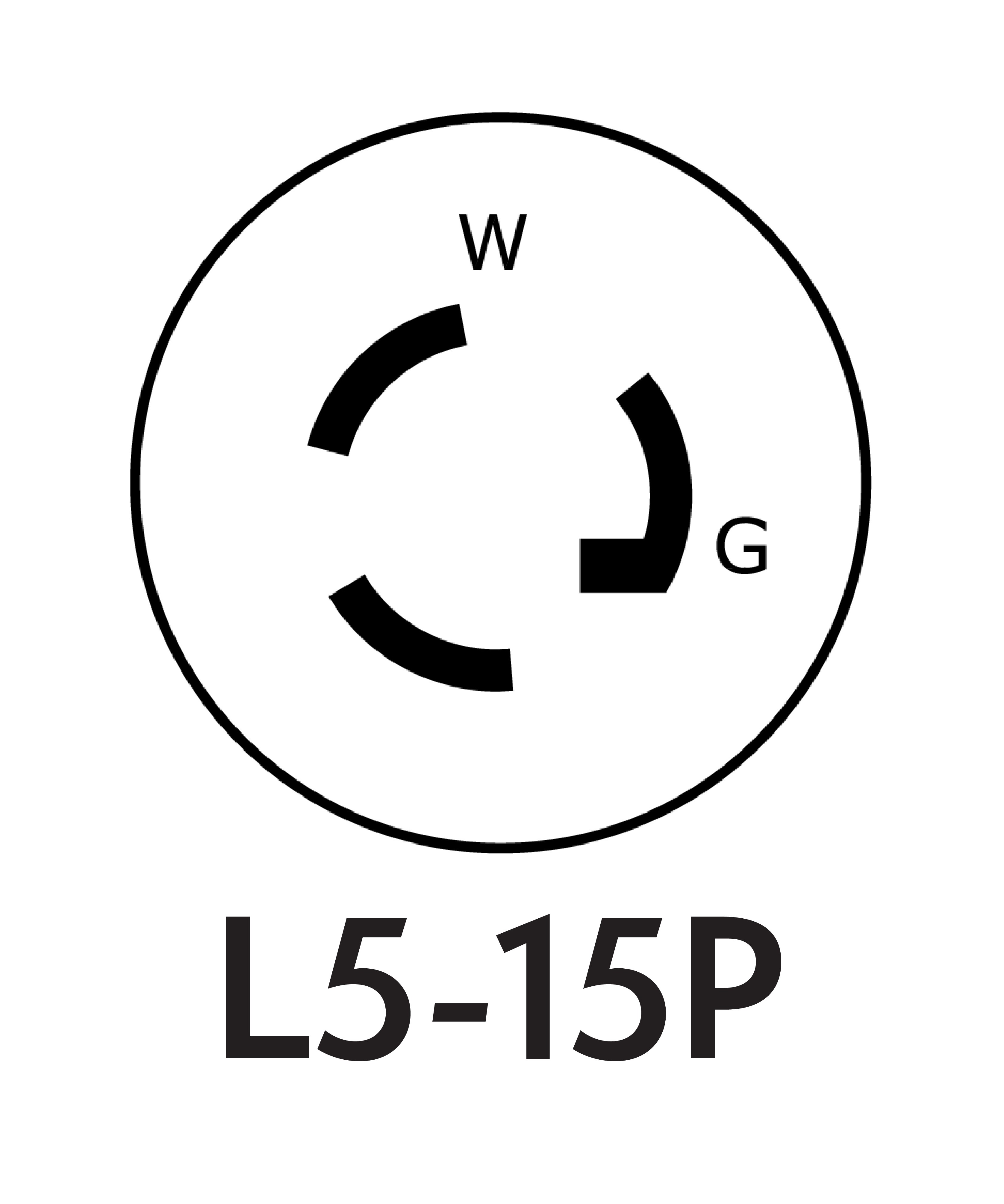

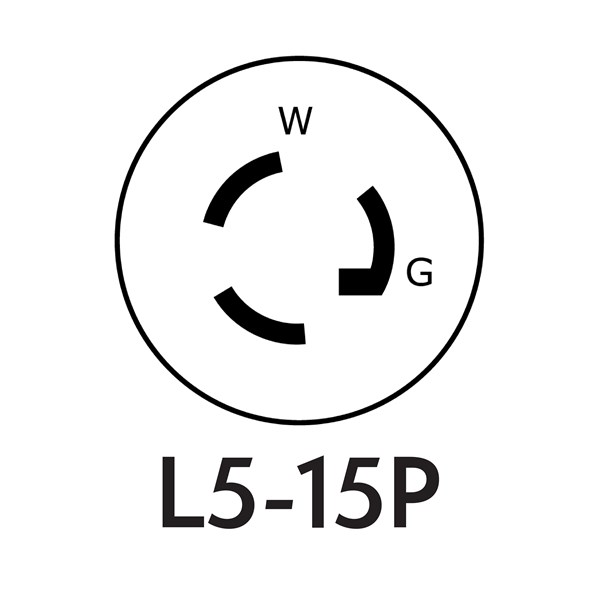

| NEMA Configuration | NEMA L5-15 |
| Amps | 15 |
| Voltage | 125V |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Watertight (IP69K) |
Standards & Certifications
| UL | UL Listed to ANSI/UL 498, File E17740 |
|---|---|
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| NSF | NSF/ANSI/3-A 14159-1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 10 |
| Case Qty | 100 |
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.21000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
L1000707 - Ericson Perma-Kleen Plugs & Connectors
