Part #:
EL520C

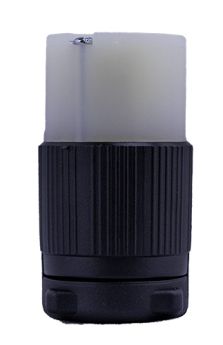

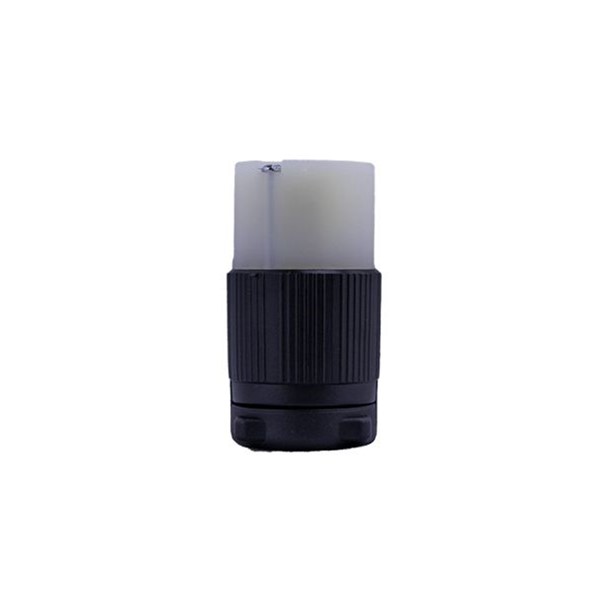

CONNECTOR NEMA L520 LOCKING 125V 20A PERMA-SPEC 2313
• cULus Approvals • Durable Nylon Husk and Plug Module • Husk Groves for secure non-slipping gloved grip • Two-Scew Internal Module design speeds assembly • Floating Cord Clamp reduces cable jacket strain and resists cable pull-out• Removable Cord Clamp insert allow a wide range of cable diameters.• Cord clamp easily accommodates Wire-Mesh, I-Grip Design
| Color | Black |
|---|---|
| UPC Code | 782862906019 |
| Country of Origin | TAIWAN |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Perma-Spec |
| Category | Wiring Devices |
| Sub Category | Commercial Grade |
Other Resources
Technical Info
| Device Type | Connector |
|---|---|
| Blade Style | Locking |
| NEMA Configuration | NEMA L5-20 |
| Amps | 20 |
| Voltage | 125V |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Indoor |
Standards & Certifications
| UL | UL Listed to ANSI/UL 498, File E17740 |
|---|---|
| cUL | cUL Listed to ANSI/UL 498, File E17740 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 10 |
| Case Qty | 100 |
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.30800 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
