Part #:

2524-P

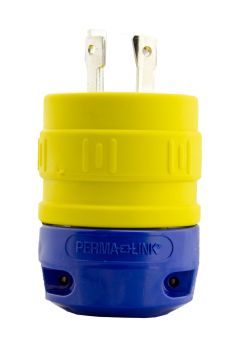

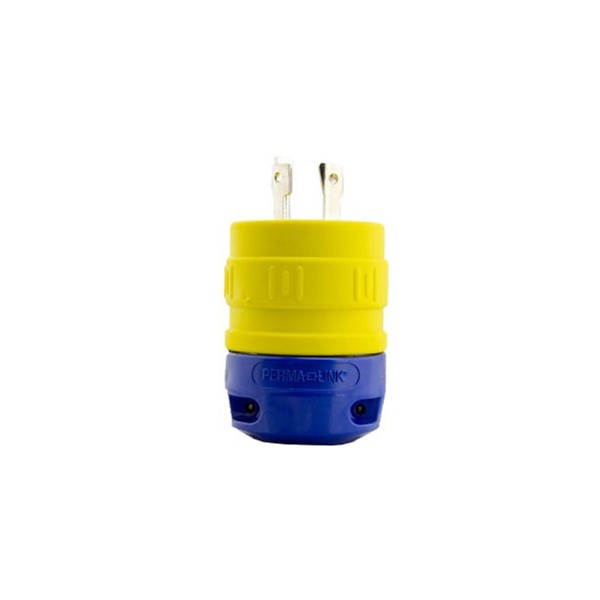

PLUG NEMA L16-30, PERMA-LINK INDUSTRIAL GRADE YELLOW WIRING DEVICE, LOCKING 30 AMP 480V 3PH 3P/4W, SIZE = LG , 2876

• UL & CSA Approvals • External TPE Molded Husk offers wider temperature range, higher crush and chemical resistance• Husk Groves for secure non-slipping gloved grip • Internal Dust and Moisture Seal prevents migration of harmful dust and moisture intrusion • Device Blades and Contact are Plated for better contact and service life • Floating Cord Clamp reduces cable jacket strain and resists cable pull-out• Removable Cord Clamp insert allow a wide range of cable diameters • Interchangeable Plug & Connector Husks offer exceptional blade protection & seal (Models 1510-P/1610-C, 1512-P/1612-C & 1514-P/1614-C)

Color Yellow
UPC Code 782862586303
Country of Origin USA
Availability:
Brand Ericson
Sub Brand / Trademark Perma-Link
Category Wiring Devices
Sub Category Industrial Grade (TPV)
Device Type Plug
Blade Style Locking
NEMA Configuration NEMA L16-30
Amps 30
Voltage 480V
Phase 3
Poles / Wires 3P/4W
Environmental Rating Indoor
UL UL Listed to ANSI/UL 498, File E17740
CSA CSA Certified to CSA C22.2 No.42, File 31943
RoHS RoHS Compliant
Pack/Unit Qty 1
Carton Qty 10
Case Qty 80
HTS code 8536694020
ECCN EAR99
Gross Weight (lbs) 0.45000
Shipment Packaging Length (in) 12
Shipment Packaging Width (in) 9
Shipment Packaging Height (in) 2
Warranty 1 Year
