Part #:
1510-PMGL

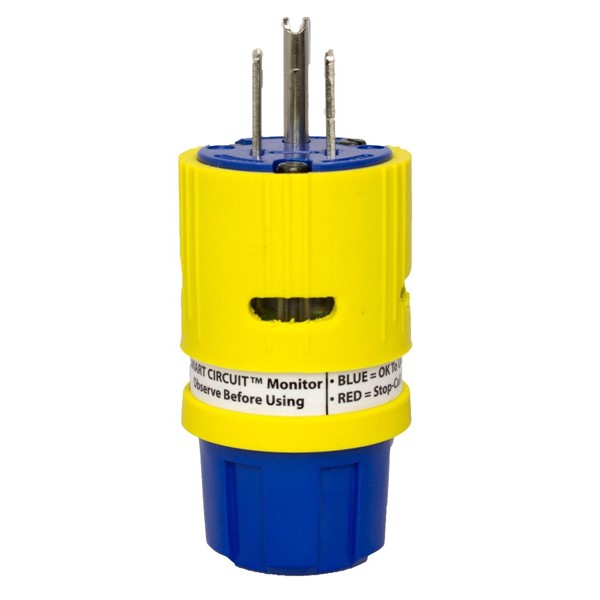

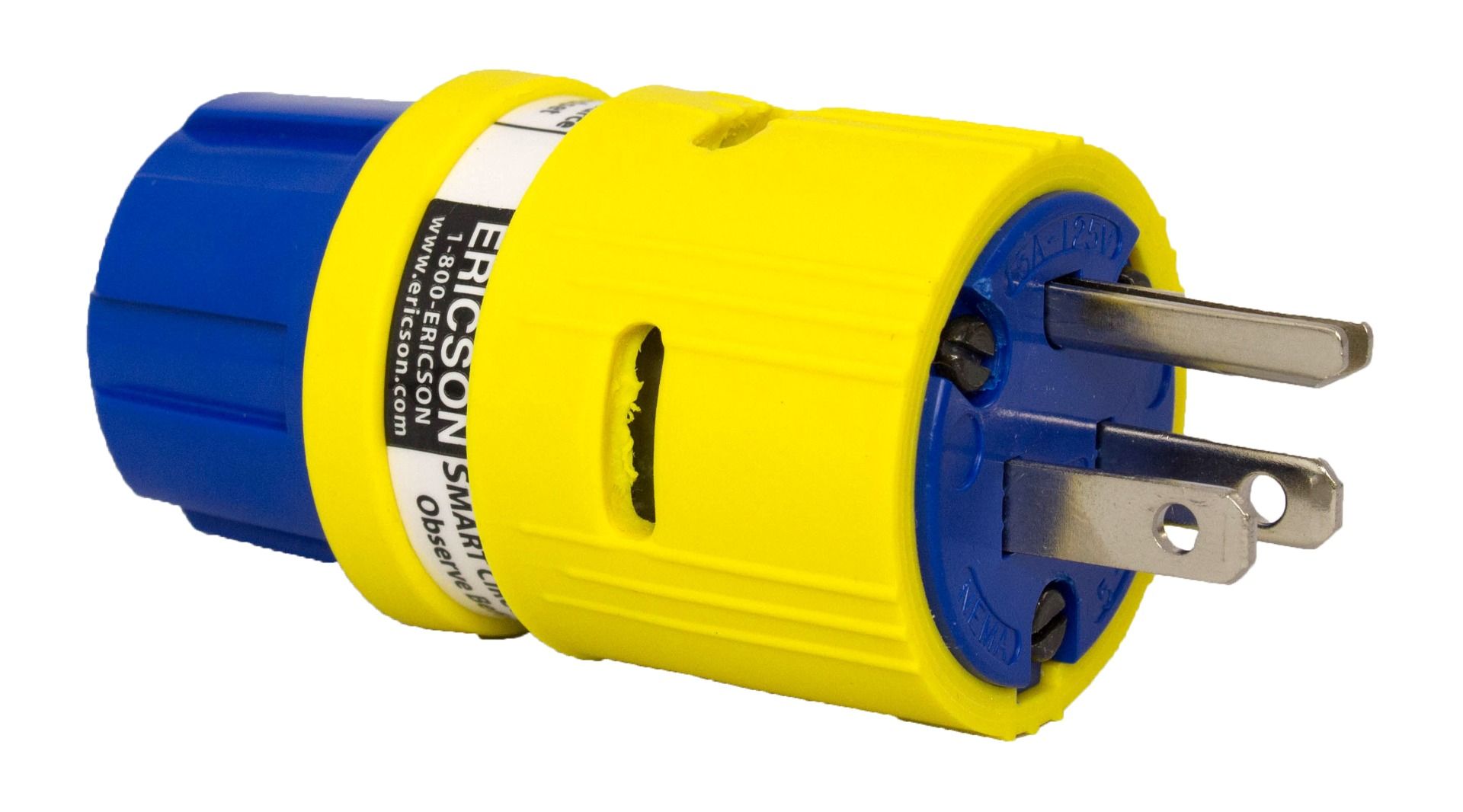

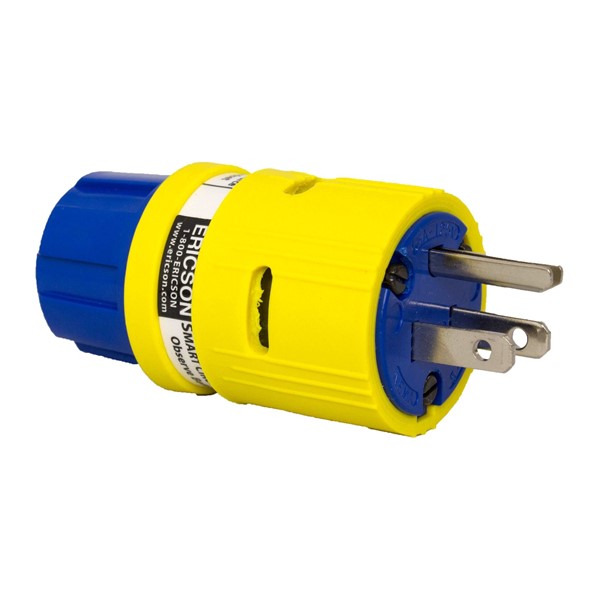

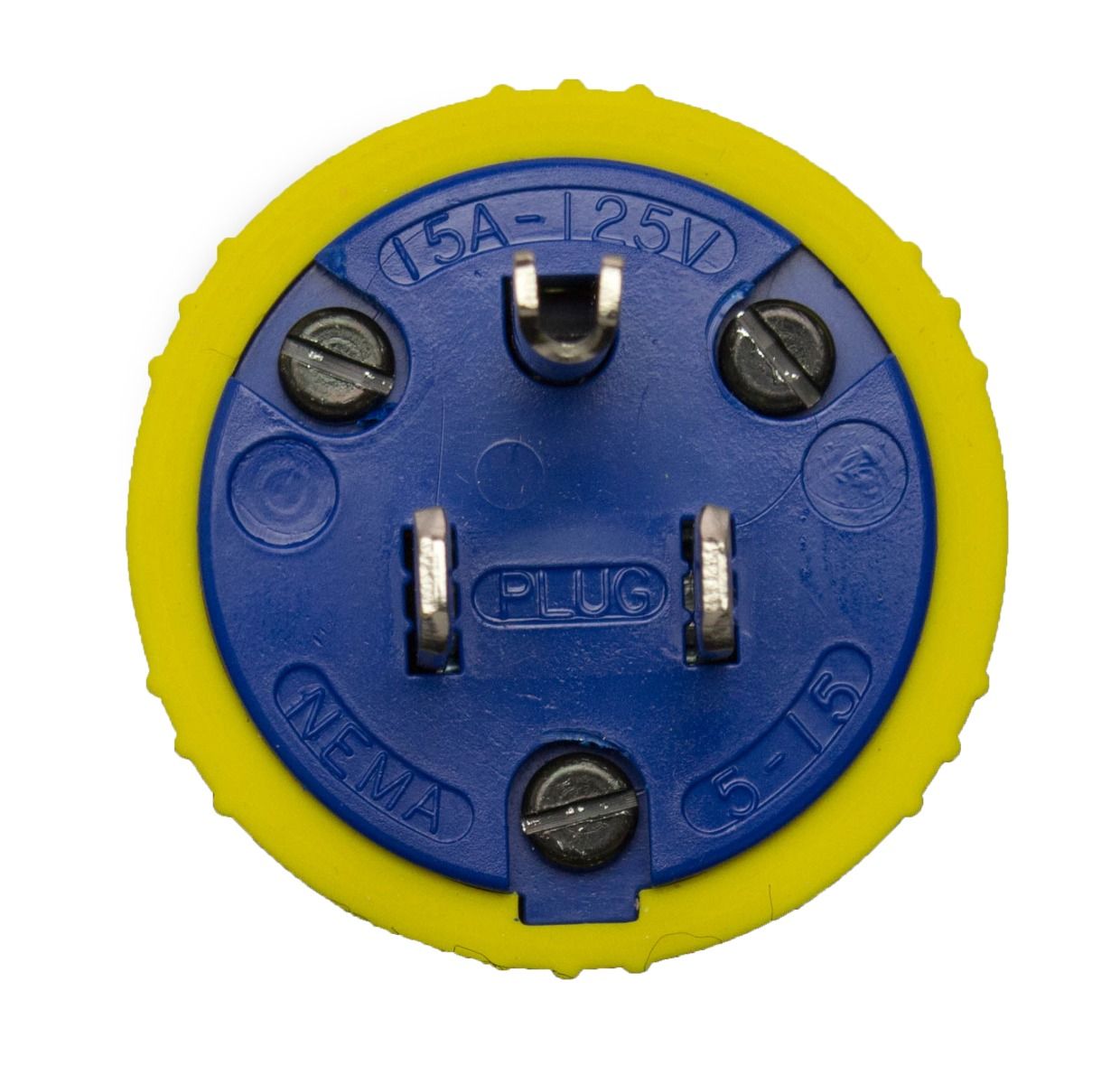

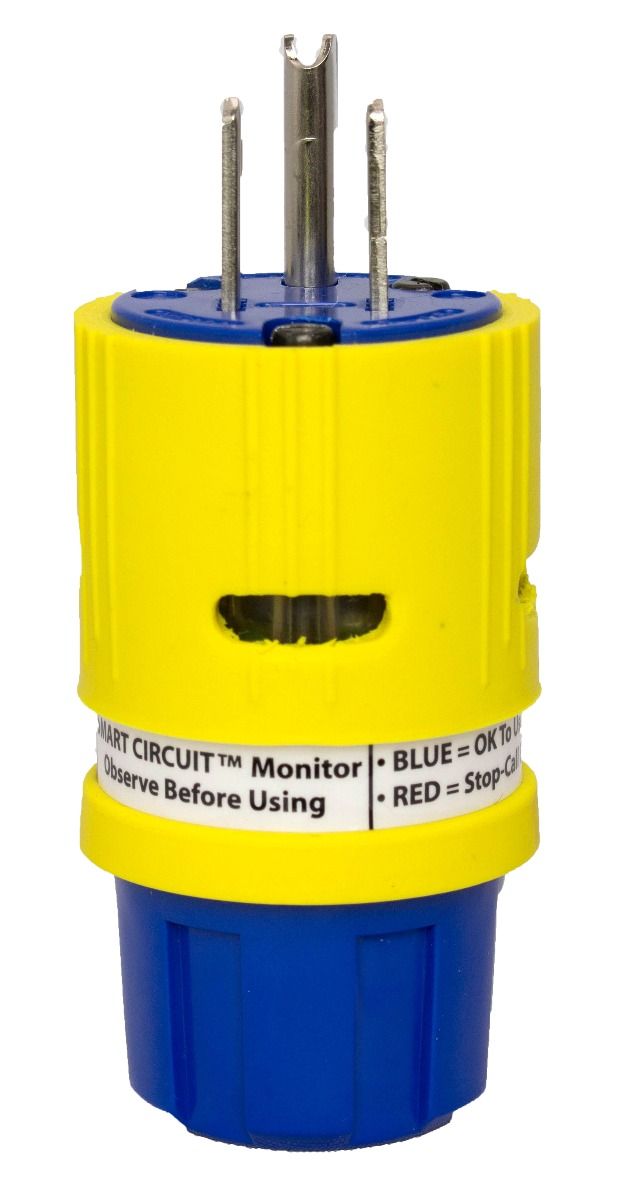

PLUG NEMA 5-15, SMART MONITOR PERMA-GRIP YELLOW GCM WIRING DEVICE, STRAIGHT 15 AMP 125V 1PH 2P/3W, SIZE = SM, 1447EZ
| Color | Yellow |
|---|---|
| UPC Code | 782862848456 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Smart Monitor |
| Category | Wiring Devices |
| Sub Category | Ground Continuity / Diagnostic |
Other Resources
Technical Info
| Device Type | Plug |
|---|---|
| Blade Style | Straight |
| NEMA Configuration | NEMA 5-15 |
| Amps | 15 |
| Voltage | 125V |
| Phase | 1 |
| Poles / Wires | 2P/3W |
| Environmental Rating | Outdoor |
Standards & Certifications
| ETL | ETL Listed to ANSI/UL 498 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No 42 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| Carton Qty | 10 |
| Case Qty | 100 |
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.23000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
L1000670 - Ericson MFG Literature Sheet Smart Monitor Series
