Part #:

2528-PW6P

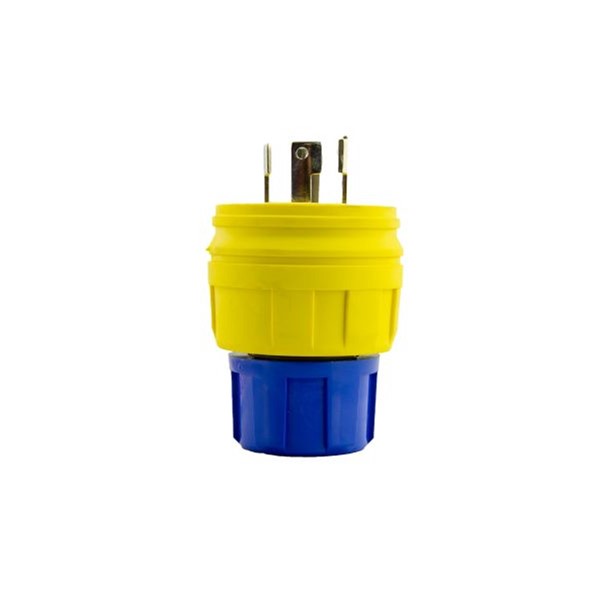

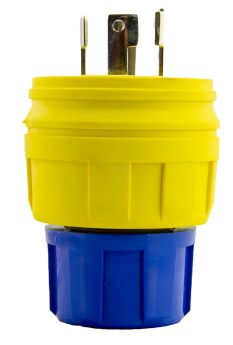

PLUG NON-NEMA, PERMA-TITE EXTREME GRADE, IP69K WATERTIGHT YELLOW WIRING DEVICE, LOCKING 30 AMP 120/208V 3PH 4P/4W, SIZE = LG, 28W09

Ideal Application Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
Color Yellow
UPC Code 782862825242
Country of Origin USA
Availability:
Brand Ericson
Sub Brand / Trademark Perma-Tite
Category Wiring Devices
Sub Category Extreme Grade, Watertight
Device Type Plug
Blade Style Locking
NEMA Configuration NON-NEMA
Amps 30
Voltage 120/208V
Phase 3
Poles / Wires 4P/4W
Environmental Rating Watertight (IP69K)
UL UL Listed to ANSI/UL 498, File E17740
NSF NSF/ANSI/3-A 14159-1
RoHS RoHS Compliant
Pack/Unit Qty 1
Carton Qty 5
Case Qty 50
HTS code 8536694020
ECCN EAR99
Gross Weight (lbs) 0.60000
Shipment Packaging Length (in) 12
Shipment Packaging Width (in) 9
Shipment Packaging Height (in) 2
Warranty 1 Year
