Part #:
2636-B2

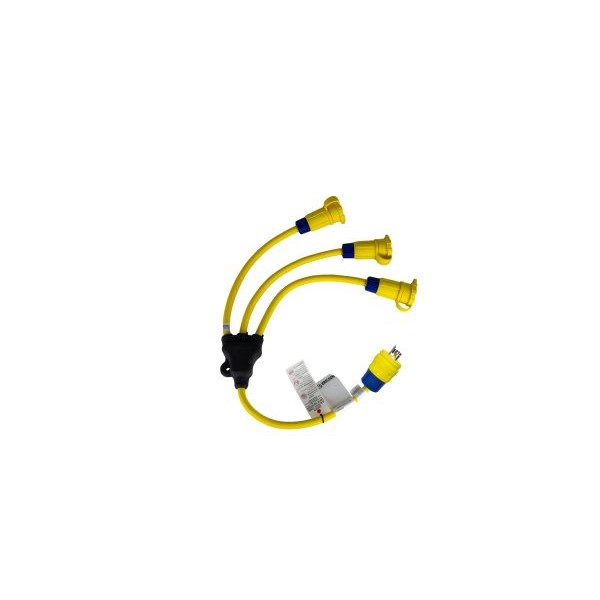

CORDSET W 3FT 12/3 W/NEMA 5-15P WT NEMA 5-15C WT NEMA5-15 125V 15A
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
|---|---|
| Color | Yellow |
| UPC Code | 782862601556 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Perma-Tite |
| Category | Cordsets / Extension Cords |
| Sub Category | W-Splitter Cordset |
Other Resources
Technical Info
| Load Capacity (Amps) | 15 |
|---|---|
| Cable Type | #12/3 SEOW |
| Cable Length (ft) | 3 |
| Plug Type | 5-15P |
| Conn or Receptacle Type | 5-15C |
| Receptacle Qty | 3 |
Standards & Certifications
| CSA | cCSAus Certified to UL 817 & CSA C22.2 No. 21 , File 090345 |
|---|---|
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8544429090 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 2.70000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 6 |
| Warranty | 1 Year |
L1000903- Ericson Factory Assembled Cordset Solutions
